- Country
- Great Britain (UK)
- Manufacturer / Brand
- Pye Ltd., Radio Works; Cambridge
- Year
- 1951 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 146303
Manual
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 15
- Main principle
- TRF (Tuned-Radio-Frequency but use of regeneration unknown)
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- AC/DC-set / 200-250 Volt
- Loudspeaker
- Permanent or electro-dynamic (moving coil), system not known yet.
- Material
- Wooden case
- from Radiomuseum.org

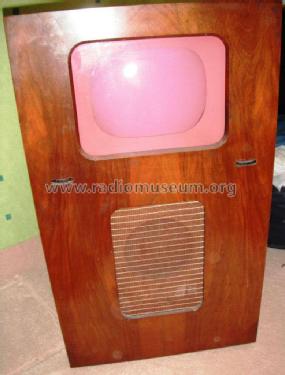

- Model: LV30C - Pye Ltd., Radio Works;
- Shape
- Console with any shape - in general
- Notes
- Pye LV30C;
22 cm/9" (8" x 6" visible size) round CRT "Black Screen" B/W 405 lines TV with single channel GB VHF band I tuner, fix aligned to London TV station channel 1, sensitivity 65 µV/ sound 25 µV, compare with most similar BV30 Birmingham & MV30 Holme Moss sets, 100 - 125 W power consumption.
- Source of data
- -- Original-techn. papers.
- Mentioned in
- (GB) Advert "The Wireless and Electrical Trader" Dec 23, 1950
- Author
- Model page created by a member from A. See "Data change" for further contributors.
