Mozart HF10M

Mozart HF10M; Pye Ltd., Radio (ID = 577279) Ampl/Mixer

Mozart HF10M; Pye Ltd., Radio (ID = 577280) Ampl/Mixer
Mozart HF10M; Pye Ltd., Radio (ID = 917625) Ampl/Mixer Mozart HF10M; Pye Ltd., Radio (ID = 917627) Ampl/Mixer
Mozart HF10M; Pye Ltd., Radio (ID = 917628) Ampl/Mixer Mozart HF10M; Pye Ltd., Radio (ID = 1024979) Ampl/Mixer
Use red slider bar for more.
Mozart HF10M; Pye Ltd., Radio (ID = 917625) Ampl/Mixer

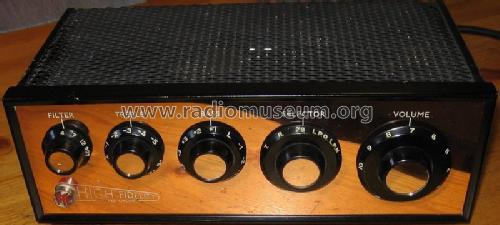

Pye Ltd., Radio: Mozart HF10M [Ampl/Mixer] ID = 917625 800x361
Select picture or schematic to display from thumbnails on the right and click for download.
For model Mozart HF10M, Pye Ltd., Radio Works; Cambridge

Country:  Great Britain (UK)
Manufacturer / Brand:  Pye Ltd., Radio Works; Cambridge
Year: 1958 ? Category: Audio Amplifier or -mixer
Valves / Tubes 3: ECC83 ECC83 EL34
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 200-250 Volt
Loudspeaker - This model requires external speaker(s).
Power out 10 W (unknown quality)
from Radiomuseum.org Model: Mozart HF10M - Pye Ltd., Radio Works;
Material Metal case
Shape Book-shelf unit.
Dimensions (WHD) 10.5 x 3.5 x 5.5 inch / 267 x 89 x 140 mm
Notes 3 valve 5 stage amplifier. Model HF10 is chassis only, HF10M & HF10EM (117v) is with metal cover, HFP1 is HF10 housed in Lowboy cabinet. Contact-cooled selenium rectifier.
Source of data -- Schematic
Circuit diagram reference Radio and TV Servicing books (R&TVS) book

Model page created by Keith Staines. See "Data change" for further contributors.
