• Year
  • 1953 ?
  • Category
  • Car Radio, perhaps also + sound player/recorder
  • Radiomuseum.org ID
  • 102312

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • Superhet with RF-stage; ZF/IF 470 kHz; 2 AF stage(s)
  • Tuned circuits
  • 7 AM circuit(s)
  • Wave bands
  • Broadcast, Long Wave and more than two Short Wave bands.
  • Power type and voltage
  • Storage Battery for all (e.g. for car radios and amateur radios) / 6 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Material
  • Metal case
  • from Radiomuseum.org

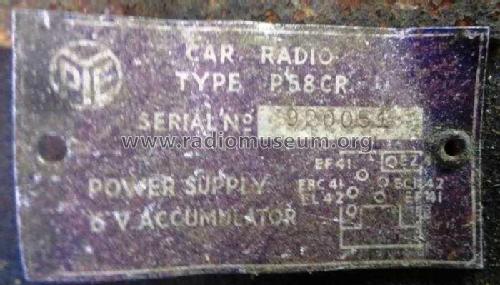

  • Model: P58CR - Pye Ltd., Radio Works;
  • Shape
  • Chassis only or for «building in»
  • Notes
  • Wavebands MW, LW, & 3 SW.
  • Circuit diagram reference
  • Radio and TV Servicing books (R&TVS) book
  • Mentioned in
  • -- Original-techn. papers.
  • Author
  • Model page created by Peter Hoddow. See "Data change" for further contributors.
