Pye Ltd., Radio: P78 [Radio] ID = 654936 816x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model P78, Pye Ltd., Radio Works; Cambridge:

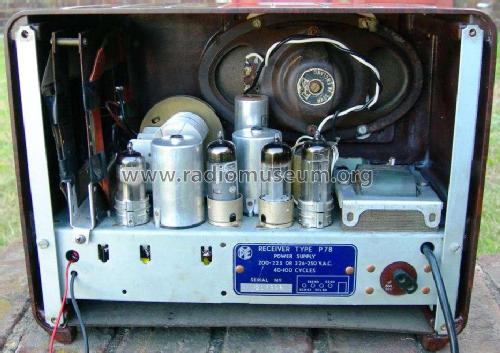

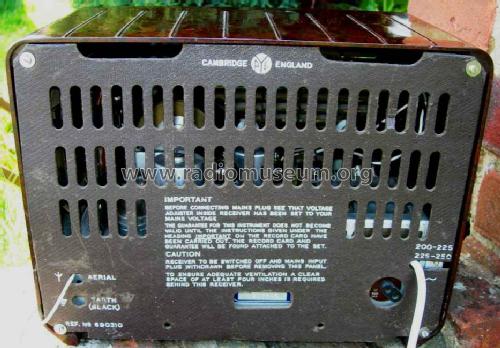

My PYE P78 AC mains 4 valve MW/LW compact table radio in its brown bakelite cabinet with white painted front. Now fully restored.

Country:  Great Britain (UK)
Manufacturer / Brand:  Pye Ltd., Radio Works; Cambridge
Year: 1953 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: ECH42 EBF80 ECL80 EZ40
Main principle Superheterodyne (common); ZF/IF 470 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Alternating Current supply (AC) / 200-250 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 1 W (unknown quality)
from Radiomuseum.org Model: P78 - Pye Ltd., Radio Works;
Material Bakelite case
Shape Tablemodel without push buttons, Mantel/Midget/Compact up to 14
Dimensions (WHD) 12.2 x 6.5 x 9 inch / 310 x 165 x 229 mm
Notes Elliptical loudspeaker 7 x 4 inch.
Net weight (2.2 lb = 1 kg) 4.8 kg / 10 lb 9.2 oz (10.573 lb)
Price in first year of sale 13.00 GBP
Circuit diagram reference Radio and TV Servicing books (R&TVS) book
Mentioned in -- Original-techn. papers.
Literature/Schematics (1) Trader Sheet 1165.

Model page created by Peter Hoddow. See "Data change" for further contributors.
