• Country
• Great Britain (UK)

• Manufacturer / Brand
• Pye Ltd., Radio Works; Cambridge

• Year
• 1953

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 98727

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• ECH42 EF41 EBC41 EL41 EZ41

• Main principle
• Superheterodyne (common); ZF/IF 470 kHz

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 200-250 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 16 cm = 6.3 inch

• Material
• Wooden case

• from Radiomuseum.org

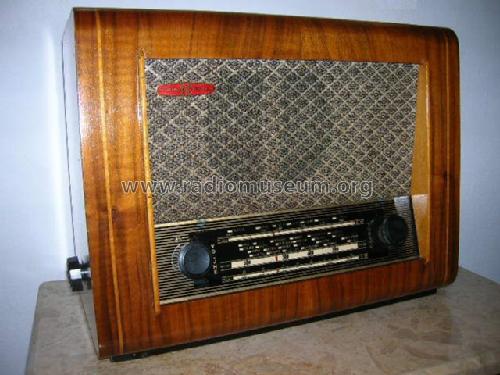

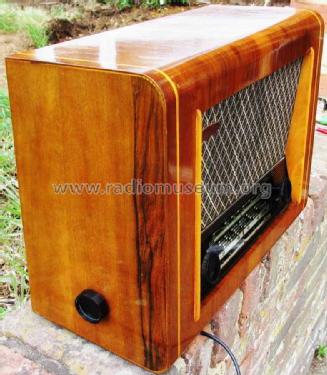

• Model: PYE P75 - Pye Ltd., Radio Works;

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 410 x 315 x 190 mm / 16.1 x 12.4 x 7.5 inch

• Source of data
• - - Data from my own collection

• Author
• Model page created by Antonio Martins-Pais. See "Data change" for further contributors.
