• Country
• Ireland

• Manufacturer / Brand
• Pye (Ireland) Ltd.; Dundrum, Dublin

• Year
• 1951 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 283240

• Number of Tubes
• 6

• Valves / Tubes
• ECH41 EF41 EBC41 EL41 EM34 EZ40

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and more than two Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 50 - 100 Hz, 200 - 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 20 cm = 7.9 inch

• Material
• Wooden case

• from Radiomuseum.org

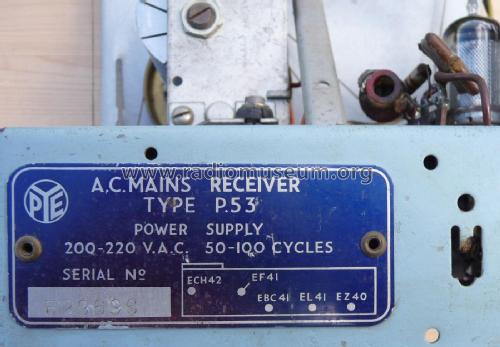

• Model: P53 [With magic Eye] - Pye Ireland Ltd.; Dundrum,

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 520 x 380 x 240 mm / 20.5 x 15 x 9.4 inch

• Notes

• See also the Irish Pye model P53 without magic eye.

• Author
• Model page created by Wolfram Zylka. See "Data change" for further contributors.
