• Country
• New Zealand-Aotearoa

• Manufacturer / Brand
• Pye (N.Z.) Ltd.; Waihi

• Year
• 1955

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 212573

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• EF41 ECH81 EF41 EBC41 EM34 EL84 EZ40

• Main principle
• Superhet with RF-stage; ZF/IF 470 kHz; 2 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast plus more than 2 Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 230 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 inch = 20.3 cm

• Power out
• 4.5 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

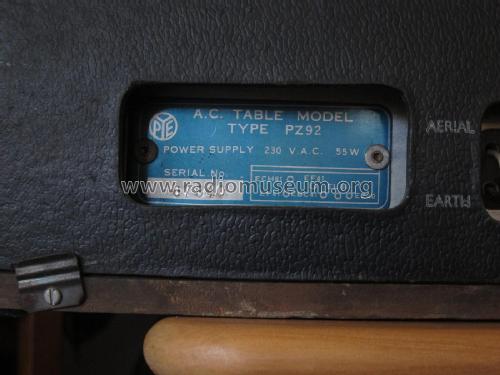

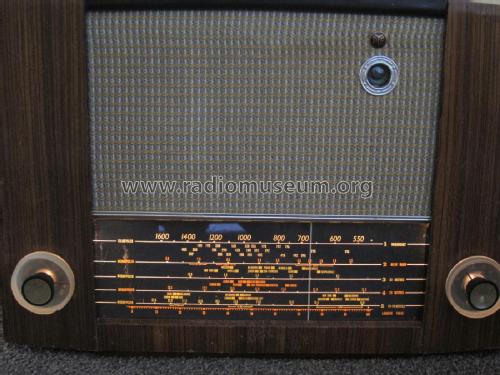

• Model: PZ92 - Pye N.Z. Ltd.; Waihi

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 20 x 13.75 x 8.75 inch / 508 x 349 x 222 mm

• Notes

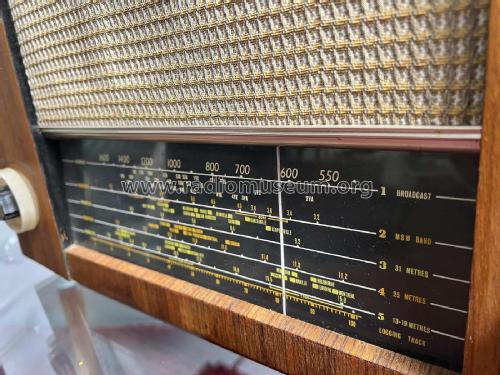

• 7-Valve (including magic eye) superhet with RF stage 5 band table receiver.

  This model has four short wave positions.

• Price in first year of sale
• 44.33 NZ £

• Author
• Model page created by Stuart Irwin. See "Data change" for further contributors.
