Echo 124Z

Echo 124Z; PZT - Państwowe (ID = 1539281) Radio
Echo 124Z; PZT - Państwowe (ID = 1538683) Radio Echo 124Z; PZT - Państwowe (ID = 1538684) Radio
Echo 124Z; PZT - Państwowe (ID = 1538685) Radio Echo 124Z; PZT - Państwowe (ID = 1538687) Radio

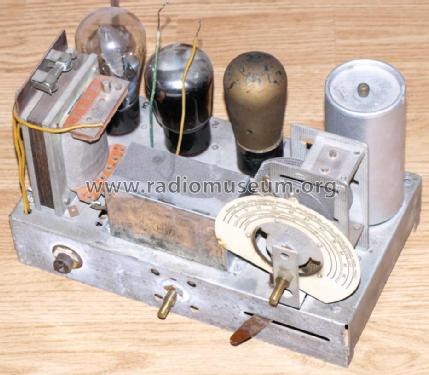

Echo 124Z; PZT - Państwowe (ID = 1538688) Radio Echo 124Z; PZT - Państwowe (ID = 1538689) Radio
Echo 124Z; PZT - Państwowe (ID = 1538690) Radio Echo 124Z; PZT - Państwowe (ID = 1538691) Radio
Echo 124Z; PZT - Państwowe (ID = 1538692) Radio
Use red slider bar for more.
Echo 124Z; PZT - Państwowe (ID = 1538683) Radio
PZT - Państwowe: Echo 124Z [Radio] ID = 1538683 933x1167
Select picture or schematic to display from thumbnails on the right and click for download.
For model Echo 124Z, PZT - Państwowe Zakłady Tele- i Radiotechniczne; Warsawa

Country:  Poland
Manufacturer / Brand:  PZT - Państwowe Zakłady Tele- i Radiotechniczne; Warsawa
Year: 1935–1938 Category: Broadcast Receiver - or past WW2 Tuner

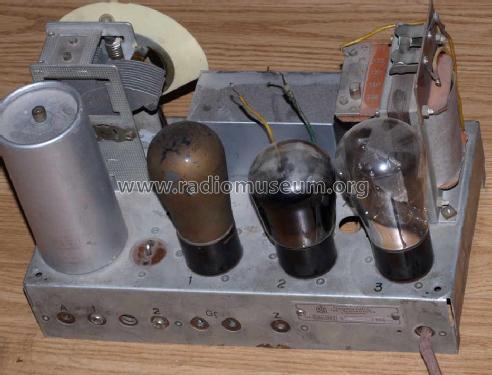

Valves / Tubes 3: E424N or AG495 B443 or PP415 1802 or V430
Main principle TRF with regeneration; 1 AF stage(s)
Tuned circuits 1 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 120; 130; 150; 220; 240 Volt

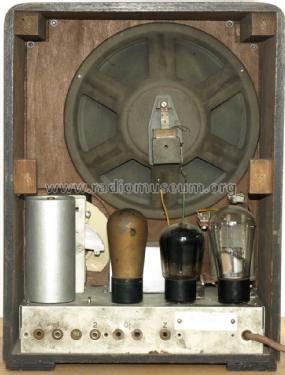

Loudspeaker Magnetic loudspeaker (reed) generic. / Ø 23 cm = 9.1 inch
Power out
from Radiomuseum.org Model: Echo 124Z - PZT - Państwowe Zakłady Tele-
Material Wooden case

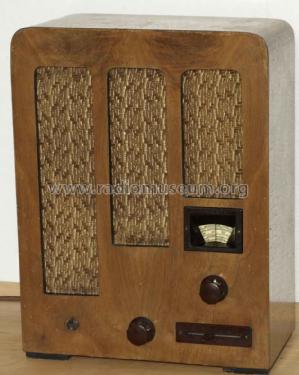

Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Dimensions (WHD) 295 x 390 x 160 mm / 11.6 x 15.4 x 6.3 inch
Notes

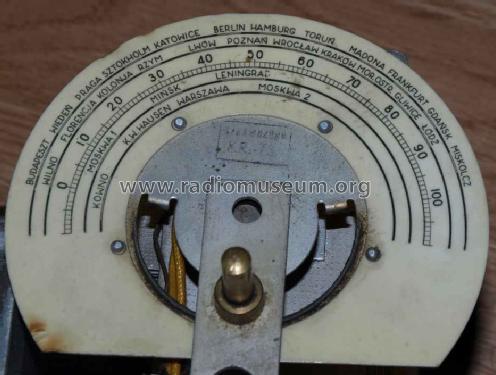

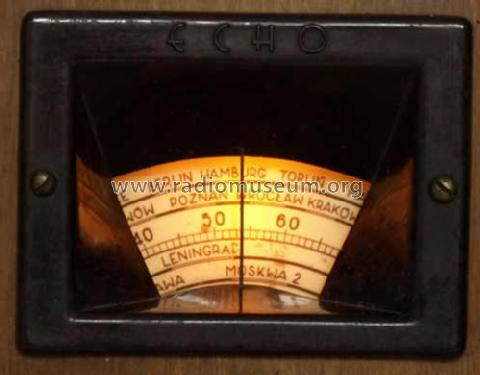

This radio is very similar to PZT Echo 121Z, probably the only difference is dial - with station names in 124Z

Net weight (2.2 lb = 1 kg) 4.6 kg / 10 lb 2.1 oz (10.132 lb)
Price in first year of sale 170.00 PLN
Mentioned in Zlote Lata Radia, Polen

Model page created by Tomasz Szczesniak. See "Data change" for further contributors.



All listed radios etc. from PZT - Państwowe Zakłady Tele- i Radiotechniczne; Warsawa
Here you find 21 models, 18 with images and 5 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
