Echo 129Z

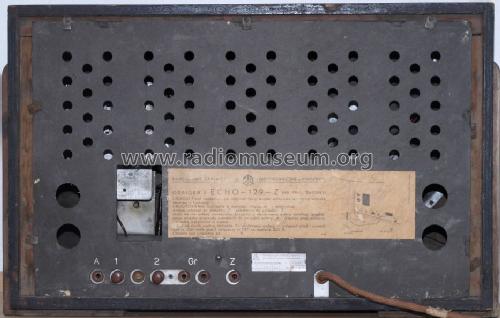

Echo 129Z; PZT - Państwowe (ID = 1533899) Radio Echo 129Z; PZT - Państwowe (ID = 1533900) Radio

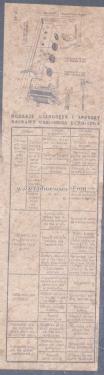

Echo 129Z; PZT - Państwowe (ID = 1533901) Radio
Use red slider bar for more.

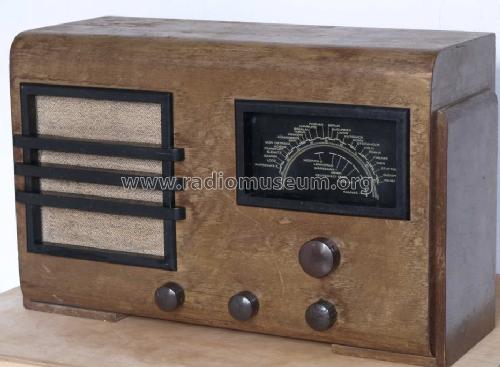

Echo 129Z; PZT - Państwowe (ID = 1533899) Radio
PZT - Państwowe: Echo 129Z [Radio] ID = 1533899 933x685
Select picture or schematic to display from thumbnails on the right and click for download.
For model Echo 129Z, PZT - Państwowe Zakłady Tele- i Radiotechniczne; Warsawa

Country:  Poland
Manufacturer / Brand:  PZT - Państwowe Zakłady Tele- i Radiotechniczne; Warsawa
Year: 1938/1939 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 3: AF7 or TAF7 B443 or PP415 1802 or V430
Main principle TRF with regeneration
Tuned circuits 1 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 120; 130; 150; 220; 240 Volt
Loudspeaker Magnetic loudspeaker (reed) generic. / Ø 22 cm = 8.7 inch
Power out 0.5 W (undistorted)
from Radiomuseum.org Model: Echo 129Z - PZT - Państwowe Zakłady Tele-
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 505 x 310 x 200 mm / 19.9 x 12.2 x 7.9 inch
Net weight (2.2 lb = 1 kg) 8.9 kg / 19 lb 9.7 oz (19.604 lb)
Price in first year of sale 185.00 PLN

Model page created by Tomasz Szczesniak. See "Data change" for further contributors.
