• Country
• Poland

• Manufacturer / Brand
• PZT - Państwowe Zakłady Tele- i Radiotechniczne; Warsawa

• Year
• 1948

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 107278

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes

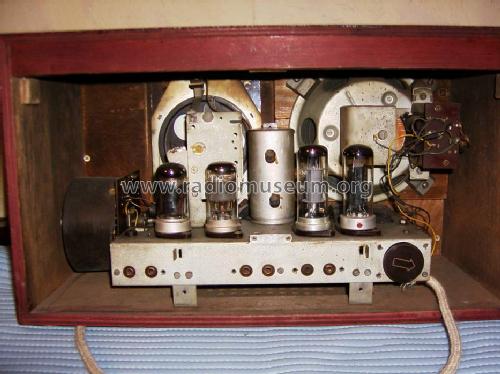

• ECH21 ECH21 EBL21 AZ21

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org

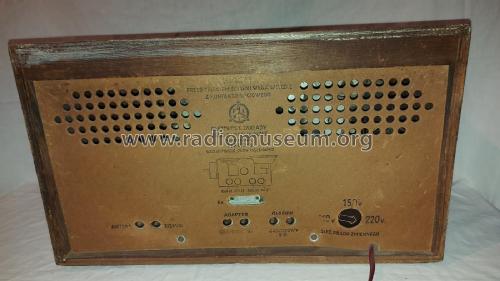

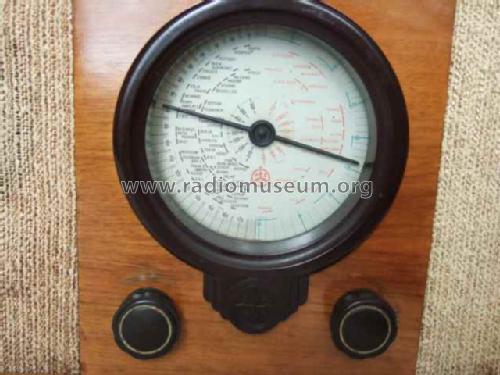

• Model: Orion RSZ-48 - PZT - Państwowe Zakłady Tele-

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 430 x 250 x 195 mm / 16.9 x 9.8 x 7.7 inch

• Notes
• Lizenz of Orion, HU.

• Source of data
• -- Collector info (Sammler)

• Author
• Model page created by Franz Scharner. See "Data change" for further contributors.
