• Year
  • 1956 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 302143

 Technical Specifications

  • Number of Tubes
  • 2
  • Number of Transistors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Alternating Current supply (AC) / 125; 160; 220; 240 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 cm = 3.1 inch
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org

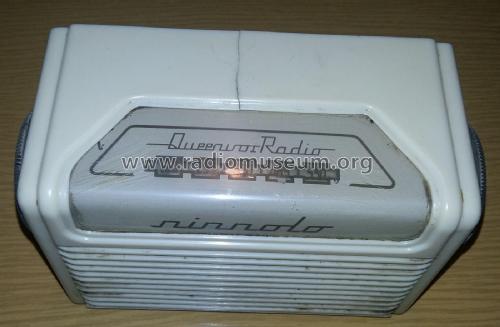

  • Model: Ninnolo - Queenvox Balzano Luigi;
  • Shape
  • Tablemodel without push buttons, Mantel/Midget/Compact up to 14
  • Dimensions (WHD)
  • 155 x 100 x 80 mm / 6.1 x 3.9 x 3.1 inch
  • Notes
  • Apparecchio di minime dimensioni, prodotto anche con marchio Peba e Alfa Radio.

    Rettificatore al selenio.

  • Net weight (2.2 lb = 1 kg)
  • 1.6 kg / 3 lb 8.4 oz (3.524 lb)
  • Author
  • Model page created by Aldo Andreani. See "Data change" for further contributors.
