AM / FM Quartz Clock Radio UR-1838

AM / FM Quartz Clock Radio UR-1838; QUELLE GmbH (ID = 803759) Radio AM / FM Quartz Clock Radio UR-1838; QUELLE GmbH (ID = 803701) Radio

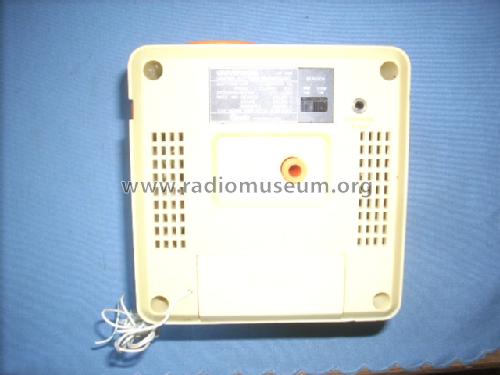

AM / FM Quartz Clock Radio UR-1838; QUELLE GmbH (ID = 803703) Radio AM / FM Quartz Clock Radio UR-1838; QUELLE GmbH (ID = 803704) Radio
Use red slider bar for more.
AM / FM Quartz Clock Radio UR-1838; QUELLE GmbH (ID = 803759) Radio
QUELLE GmbH: AM / FM Quartz Clock Radio UR-1838 [Radio] ID = 803759 640x480
Select picture or schematic to display from thumbnails on the right and click for download.
For model AM / FM Quartz Clock Radio UR-1838, QUELLE GmbH (Universum); Fürth und Nürnberg

Country:  Germany
Manufacturer / Brand:  QUELLE GmbH (Universum); Fürth und Nürnberg
Year: 1978 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 1:
Main principle Superheterodyne (common)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Dry Batteries / 2 x 1,5 & 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: AM / FM Quartz Clock Radio UR-1838 - QUELLE GmbH Universum; Fürth
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 112 x 118 x 95 mm / 4.4 x 4.6 x 3.7 inch
Notes UKW Frequenzbereich 88 - 108 MHz. MW Frequenzbereich 540 - 1600 kHz.
Source of data - - Data from my own collection

Model page created by Norbert Haselbach. See "Data change" for further contributors.
