AR1941

AR1941; QUELLE GmbH (ID = 938945) Car Radio

AR1941; QUELLE GmbH (ID = 938946) Car Radio

AR1941; QUELLE GmbH (ID = 938947) Car Radio

AR1941; QUELLE GmbH (ID = 938948) Car Radio
AR1941; QUELLE GmbH (ID = 938944) Car Radio
Use red slider bar for more.
AR1941; QUELLE GmbH (ID = 938944) Car Radio

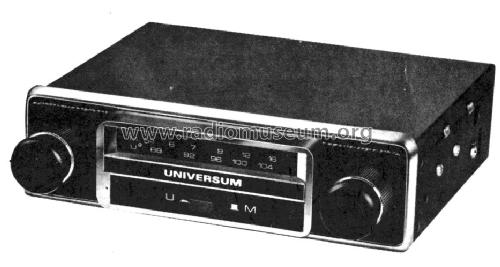

QUELLE GmbH: AR1941 [Car Radio] ID = 938944 933x500
Select picture or schematic to display from thumbnails on the right and click for download.
For model AR1941, QUELLE GmbH (Universum); Fürth und Nürnberg:
Aus Quelle-Servicemanual

Country:  Germany
Manufacturer / Brand:  QUELLE GmbH (Universum); Fürth und Nürnberg
Year: 1974 Category: Car Radio, perhaps also + sound player/recorder
Semiconductors (the count is only for transistors) 11:
Main principle Superheterodyne (common); ZF/IF 455/10700 kHz
Tuned circuits 5 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
Loudspeaker - This model requires external speaker(s).
Power out 5 W (unknown quality)
from Radiomuseum.org Model: AR1941 - QUELLE GmbH Universum; Fürth
Material Metal case
Shape Chassis only or for «building in»
Dimensions (WHD) 44 x 166 x 122 mm / 1.7 x 6.5 x 4.8 inch
Source of data -- Original-techn. papers.

Model page created by Heiko zur Mühlen. See "Data change" for further contributors.
