AR221

AR221; QUELLE GmbH (ID = 912162) Car Radio

AR221; QUELLE GmbH (ID = 912163) Car Radio

AR221; QUELLE GmbH (ID = 912164) Car Radio

AR221; QUELLE GmbH (ID = 912165) Car Radio

AR221; QUELLE GmbH (ID = 912166) Car Radio

AR221; QUELLE GmbH (ID = 912167) Car Radio

AR221; QUELLE GmbH (ID = 912168) Car Radio

AR221; QUELLE GmbH (ID = 912169) Car Radio

AR221; QUELLE GmbH (ID = 912170) Car Radio

AR221; QUELLE GmbH (ID = 912172) Car Radio
AR221; QUELLE GmbH (ID = 912161) Car Radio
Use red slider bar for more.
AR221; QUELLE GmbH (ID = 912161) Car Radio

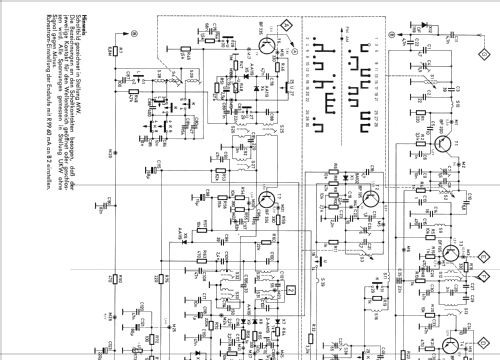

QUELLE GmbH: AR221 [Car Radio] ID = 912161 759x377
Select picture or schematic to display from thumbnails on the right and click for download.
For model AR221, QUELLE GmbH (Universum); Fürth und Nürnberg:
Aus Quelle-Service-Manual

Country:  Germany
Manufacturer / Brand:  QUELLE GmbH (Universum); Fürth und Nürnberg
Year: 1972 ? Category: Car Radio, perhaps also + sound player/recorder
Semiconductors (the count is only for transistors) 12:
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 7 AM circuit(s)     12 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: AR221 - QUELLE GmbH Universum; Fürth
Material Metal case
Shape Chassis only or for «building in»
Dimensions (WHD) 178 x 41 x 135 mm / 7 x 1.6 x 5.3 inch
Notes Autoradio
Net weight (2.2 lb = 1 kg) 1.2 kg / 2 lb 10.3 oz (2.643 lb)
Source of data -- Original-techn. papers.

Model page created by Heiko zur Mühlen. See "Data change" for further contributors.
