CT2315

CT2315; QUELLE GmbH (ID = 936222) R-Player

CT2315; QUELLE GmbH (ID = 936223) R-Player

CT2315; QUELLE GmbH (ID = 936224) R-Player

CT2315; QUELLE GmbH (ID = 936225) R-Player

CT2315; QUELLE GmbH (ID = 936226) R-Player

CT2315; QUELLE GmbH (ID = 936228) R-Player

CT2315; QUELLE GmbH (ID = 936230) R-Player
CT2315; QUELLE GmbH (ID = 936221) R-Player
Use red slider bar for more.
CT2315; QUELLE GmbH (ID = 936221) R-Player
QUELLE GmbH: CT2315 [R-Player] ID = 936221 930x720
Select picture or schematic to display from thumbnails on the right and click for download.
For model CT2315, QUELLE GmbH (Universum); Fürth und Nürnberg:

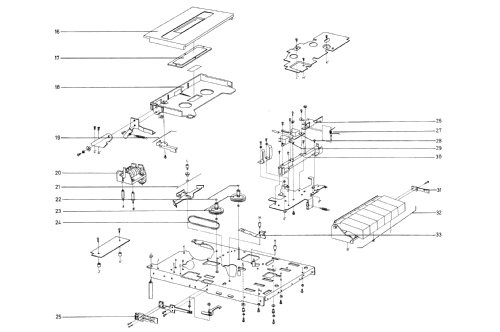

Aus Quelle-Servicemanual

Country:  Germany
Manufacturer / Brand:  QUELLE GmbH (Universum); Fürth und Nürnberg
Year: 1971 ? Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) 15:
Main principle Audio-Amplification
Wave bands - without
Details Cassette-Recorder or -Player
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: CT2315 - QUELLE GmbH Universum; Fürth
Material Various materials
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 265 x 77 x 225 mm / 10.4 x 3 x 8.9 inch
Net weight (2.2 lb = 1 kg) 3 kg / 6 lb 9.7 oz (6.608 lb)
Source of data -- Original-techn. papers.

Model page created by Heiko zur Mühlen. See "Data change" for further contributors.
