CT2722

CT2722; QUELLE GmbH (ID = 930888) R-Player

CT2722; QUELLE GmbH (ID = 930889) R-Player

CT2722; QUELLE GmbH (ID = 930890) R-Player

CT2722; QUELLE GmbH (ID = 930891) R-Player
CT2722; QUELLE GmbH (ID = 930887) R-Player
Use red slider bar for more.
CT2722; QUELLE GmbH (ID = 930887) R-Player

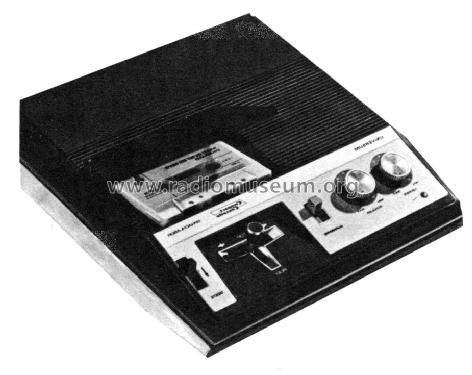

QUELLE GmbH: CT2722 [R-Player] ID = 930887 926x735
Select picture or schematic to display from thumbnails on the right and click for download.
For model CT2722, QUELLE GmbH (Universum); Fürth und Nürnberg:
Aus Quelle-Servicemanual

Country:  Germany
Manufacturer / Brand:  QUELLE GmbH (Universum); Fürth und Nürnberg
Year: 1972 Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) 10:
Main principle Superheterodyne (common)
Wave bands - without
Details Cassette-Recorder or -Player
Power type and voltage Line / Batteries (any type) / 220 / 4 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 0.5 W (unknown quality)
from Radiomuseum.org Model: CT2722 - QUELLE GmbH Universum; Fürth
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 250 x 260 x 75 mm / 9.8 x 10.2 x 3 inch
Net weight (2.2 lb = 1 kg) 2.5 kg / 5 lb 8.1 oz (5.507 lb)
Source of data -- Original-techn. papers.

Model page created by Heiko zur Mühlen. See "Data change" for further contributors.
