FV5547

FV5547; QUELLE GmbH (ID = 934090) R-Player

FV5547; QUELLE GmbH (ID = 934092) R-Player

FV5547; QUELLE GmbH (ID = 934093) R-Player
FV5547; QUELLE GmbH (ID = 934089) R-Player
Use red slider bar for more.
FV5547; QUELLE GmbH (ID = 934089) R-Player

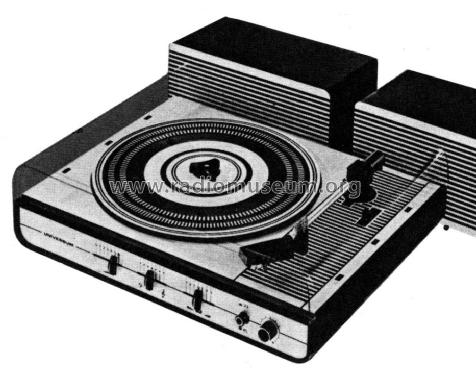

QUELLE GmbH: FV5547 [R-Player] ID = 934089 933x735
Select picture or schematic to display from thumbnails on the right and click for download.
For model FV5547, QUELLE GmbH (Universum); Fürth und Nürnberg:
Aus Quelle-Servicemanual

Country:  Germany
Manufacturer / Brand:  QUELLE GmbH (Universum); Fürth und Nürnberg
Year: 1974 ? Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) 2:
Main principle Audio-Amplification
Wave bands - without
Details Record Player (not changer)
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker - This model requires external speaker(s).
Power out 4 W (unknown quality)
from Radiomuseum.org Model: FV5547 - QUELLE GmbH Universum; Fürth
Material Various materials
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 375 x 120 x 300 mm / 14.8 x 4.7 x 11.8 inch
Notes Plattenspieler mit eingebautem NF-Verstärker und 2 separaten Lautsprecherboxen.
NF-Verstärker in IC-Technik. 2 Transistoren in der Motorregelung für den DC-Motor.
Net weight (2.2 lb = 1 kg) 2.7 kg / 5 lb 15.2 oz (5.947 lb)
Source of data -- Original-techn. papers.

Model page created by Heiko zur Mühlen. See "Data change" for further contributors.
