Hi-Fi-Hochleistungs-Lautsprecherbox Best. Nr. 003674

QUELLE GmbH (Universum); Fürth und Nürnberg

  • Year
  • 1973–1979
  • Category
  • Loudspeaker, headphone or earphone
  • Radiomuseum.org ID
  • 308798

 Technical Specifications

  • Wave bands
  • - without
  • Power type and voltage
  • No Power needed
  • Loudspeaker
  • 3 Loudspeakers
  • Power out
  • 30 W (50 W max.)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Hi-Fi-Hochleistungs-Lautsprecherbox Best. Nr. 003674 - QUELLE GmbH Universum; Fürth
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 210 x 370 x 210 mm / 8.3 x 14.6 x 8.3 inch
  • Notes

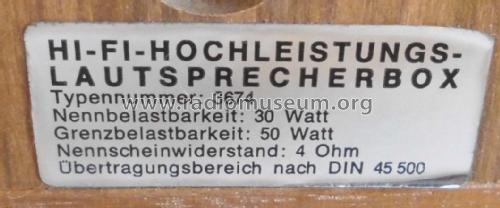

  • Universum HiFi-Kompaktbox Best. Nr. 003674

    2 Weg - Lautsprecherbox, geschlossen, mit 3 Lautsprechern

    • zwei Tieftöner  Ø 130 mm

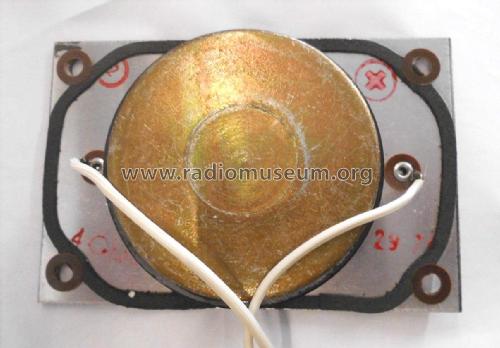

    • Kalotten-Hochtöner Ø 25 mm

    Die Lautsprecherbestückung ist von Wigo ,Übertragungsbereich 45 bis 20.000 Hz Nennbelastbarkeit 30 Watt, Musikbelastbarkeit 50 Watt, Impedanz 4 Ω, Bruttovolumen 16,3 Liter, Aluminium Frontabdeckung (eingeklebt).

    Gehäuseausführung: 003674 - Nussbaum natur

    Weitere Ausführungen:  003675 - weiß

    Preisentwicklung:

    • 1973 DM 165,-
    • 1974 DM 175,-
    • 1976 DM 185,-
    • 1977 DM 189,-



  • Net weight (2.2 lb = 1 kg)
  • 6 kg / 13 lb 3.5 oz (13.216 lb)
  • Price in first year of sale
  • 165.00 DM
  • Mentioned in
  • -- Original prospect or advert (Quelle Kataloge 1973/74 bis 1979)
  • Author
  • Model page created by Michael Lienhop. See "Data change" for further contributors.
