• Country
• Germany

• Manufacturer / Brand
• QUELLE GmbH (Universum); Fürth und Nürnberg

• Year
• 1970 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 124846

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 23

• Semiconductors
• AF121 AF121 AF125 BF195 BF194 BF194 BF195 BC147 BC147 BC149 BC147 BC147 AC126 BC149 BC149 BC148 BC148 AC128 AC128 AD161 AD162 AD161 AD162 AA119

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 5 AM circuit(s)     9 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 10 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

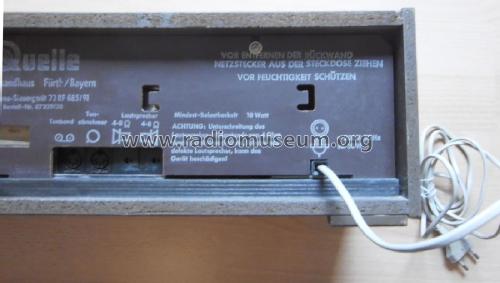

• Model: HiFi-Stereo-Steuergerät Best.Nr. 07329/30 Ch= Philips 22RF685 /91 - QUELLE GmbH Universum; Fürth

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 540 x 210 x 165 mm / 21.3 x 8.3 x 6.5 inch

• Notes

• Quelle Best.Nr. 07329/30 enthält das Chassis 22RF685 /91.
  Stereo-Decoder eingebaut.
  2 separate Lautsprecher-Boxen mit je einem Oval-Lautsprecher 20 x 8 cm im Lieferumfang.

  Hergestellt von Philips für Quelle GmbH, Fürth

• Net weight (2.2 lb = 1 kg)
• 10 kg / 22 lb 0.4 oz (22.026 lb)

• Mentioned in
• -- Original-techn. papers.

• Author
• Model page created by Werner Ehehalt. See "Data change" for further contributors.
