Miniradio PW305

Miniradio PW305; QUELLE GmbH (ID = 1639028) Radio Miniradio PW305; QUELLE GmbH (ID = 1639029) Radio
Miniradio PW305; QUELLE GmbH (ID = 1639030) Radio Miniradio PW305; QUELLE GmbH (ID = 1876933) Radio
Miniradio PW305; QUELLE GmbH (ID = 1876934) Radio Miniradio PW305; QUELLE GmbH (ID = 1876935) Radio
Miniradio PW305; QUELLE GmbH (ID = 1876936) Radio Miniradio PW305; QUELLE GmbH (ID = 1876937) Radio
Miniradio PW305; QUELLE GmbH (ID = 2046270) Radio Miniradio PW305; QUELLE GmbH (ID = 2046271) Radio
Use red slider bar for more.

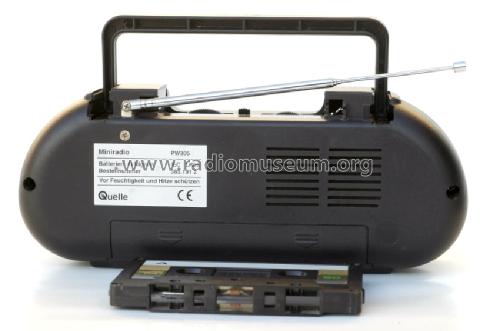

Miniradio PW305; QUELLE GmbH (ID = 1639028) Radio
QUELLE GmbH: Miniradio PW305 [Radio] ID = 1639028 850x564
Select picture or schematic to display from thumbnails on the right and click for download.
For model Miniradio PW305, QUELLE GmbH (Universum); Fürth und Nürnberg

Country:  Germany
Manufacturer / Brand:  QUELLE GmbH (Universum); Fürth und Nürnberg
Year: 1990 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common); ZF/IF 10700 kHz
Wave bands FM Broadcast Band Only
Details
Power type and voltage Dry Batteries / AA: 4 x 1,5 Volt
Loudspeaker 2 Loudspeakers / Ø 5.5 cm = 2.2 inch
Power out
from Radiomuseum.org Model: Miniradio PW305 - QUELLE GmbH Universum; Fürth
Material Plastics (no bakelite or catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 210 x 80 x 70 mm / 8.3 x 3.1 x 2.8 inch
Net weight (2.2 lb = 1 kg) 1.080 kg / 2 lb 6.1 oz (2.379 lb)

Model page created by Oleksandr Reshetniak. See "Data change" for further contributors.



All listed radios etc. from QUELLE GmbH (Universum); Fürth und Nürnberg
Here you find 1020 models, 839 with images and 467 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
