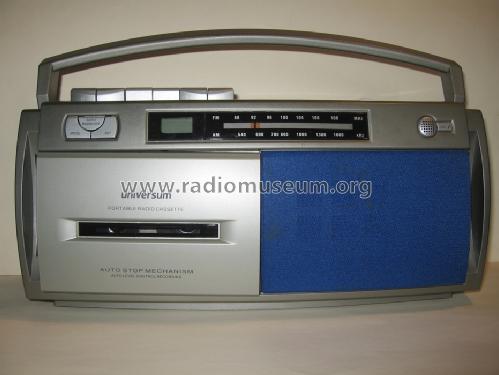

Portable Radio Cassette CTR-1000
QUELLE GmbH (Universum); Fürth und Nürnberg
- Country
- Germany
- Manufacturer / Brand
- QUELLE GmbH (Universum); Fürth und Nürnberg
- Year
- 2000 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 239567
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast (BC) and FM or UHF.
- Details
- Cassette-Recorder or -Player; Radio with other functions
- Power type and voltage
- Line / Batteries (any type) / 230 / LR20: 4 x 1,5 & LR03: 1 x 1,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Power out
- 1 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Portable Radio Cassette CTR-1000 - QUELLE GmbH Universum; Fürth
- Shape
- Tablemodel with Clock ((Alarm-) Clock Radio).
- Dimensions (WHD)
- 293 x 178 x 108 mm / 11.5 x 7 x 4.3 inch
- Notes
-
Mono-Radiorecorder CTR-1000, bestehend aus: AM/FM-Radio, Kassettenrecorder und digitaler Weckuhr; eingebautes Mikrofon; Kopf- /Ohrhörerausgang 3,5mm Klinkenbuchse; Teleskopantenne 60cm für FM; eingebaute Ferritantenne für AM; Leistungsaufnahme ca. 2,2 Watt.
- Net weight (2.2 lb = 1 kg)
- 1.209 kg / 2 lb 10.6 oz (2.663 lb)
- Author
- Model page created by Michael Mischke. See "Data change" for further contributors.
