• Year
  • 1974
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 191595

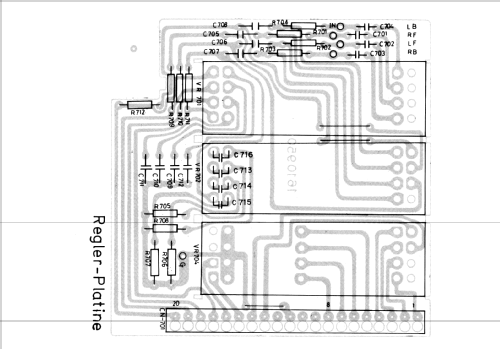

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 65
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast, Long Wave, Short Wave plus FM or UHF.
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 220 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 70 W (unknown quality)
  • Material
  • Various materials
  • from Radiomuseum.org
  • Model: QVT2346 - QUELLE GmbH Universum; Fürth
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 644 x 138 x 290 mm / 25.4 x 5.4 x 11.4 inch
  • Net weight (2.2 lb = 1 kg)
  • 11 kg / 24 lb 3.7 oz (24.229 lb)
  • Source of data
  • -- Original-techn. papers.
  • Author
  • Model page created by Heiko zur Mühlen. See "Data change" for further contributors.
