• Country
• Germany

• Manufacturer / Brand
• QUELLE GmbH (Universum); Fürth und Nürnberg

• Year
• 1978 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 133083

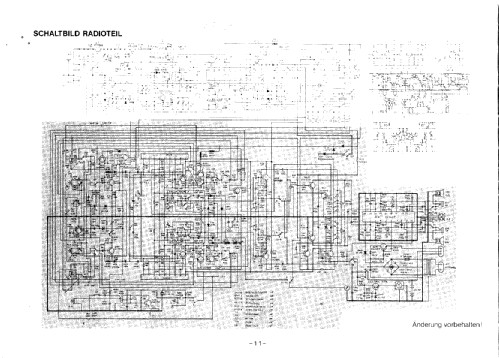

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 21

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Line / Batteries (any type) / 220 / D: 6 x 1,5 Volt

• Loudspeaker
• 2 Loudspeakers / Ø 11 cm = 4.3 inch

• Power out
• 10 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Radio-Recorder CTR 2386 - QUELLE GmbH Universum; Fürth

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 410 x 245 x 105 mm / 16.1 x 9.6 x 4.1 inch

• Notes
• Radioempfang: UKW 87,5 bis 104 MHz, MW 520 bis 1610 kHz, Teleskopantenne für UKW und Ferritantenne für MW,
  Stereo-Aufnahmesystem Vierspur, HF-Vormagnetisierung, Compact-Cassetten C 30 - C 90 Fe.+Cr., Bandgeschwindigkeit 4,75 cm/s,
  Eingang für Stereo-Doppel-Mikrofon ca. 500Ω, Ausgang: Stereo-Kopfhörer, 2 Lautsprecher 4Ω.

• Net weight (2.2 lb = 1 kg)
• 4.9 kg / 10 lb 12.7 oz (10.793 lb)

• Price in first year of sale
• 288.00 DM

• Source of data
• -- Original-techn. papers.

• Author
• Model page created by Karlheinz Fischer. See "Data change" for further contributors.
