Senator Volltransistor Vierspur NT403 Best.-Nr. 06564

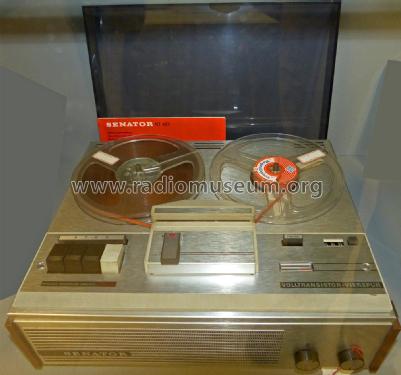

Senator Volltransistor Vierspur NT403 Best.-Nr. 06564; QUELLE GmbH (ID = 2157354) R-Player Senator Volltransistor Vierspur NT403 Best.-Nr. 06564; QUELLE GmbH (ID = 2157342) R-Player
Senator Volltransistor Vierspur NT403 Best.-Nr. 06564; QUELLE GmbH (ID = 1740286) R-Player
Use red slider bar for more.
Senator Volltransistor Vierspur NT403 Best.-Nr. 06564; QUELLE GmbH (ID = 2157354) R-Player
QUELLE GmbH: Senator Volltransistor Vierspur NT403 Best.-Nr. 06564 [R-Player] ID = 2157354 1400x1462
Select picture or schematic to display from thumbnails on the right and click for download.
For model Senator Volltransistor Vierspur NT403 Best.-Nr. 06564, QUELLE GmbH (Universum); Fürth und Nürnberg:
Gerät steht im Deutschen Phono Museum in St. Georgen.

Country:  Germany
Manufacturer / Brand:  QUELLE GmbH (Universum); Fürth und Nürnberg
Year: 1970 Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) 8:
Main principle Audio-Amplification
Wave bands - without
Details Tape Recorder
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 2.5 W (undistorted)
from Radiomuseum.org Model: Senator Volltransistor Vierspur NT403 Best.-Nr. 06564 - QUELLE GmbH Universum; Fürth
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 395 x 160 x 310 mm / 15.6 x 6.3 x 12.2 inch
Notes

4-Spur; Spulengröße 18cm; Geschwindigkeit 9,5cm/s; Frequenzgang 60-13000Hz;

Net weight (2.2 lb = 1 kg) 9.5 kg / 20 lb 14.8 oz (20.925 lb)
Price in first year of sale 339.00 DM
Mentioned in -- Original-techn. papers.
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Andreas Sommerer. See "Data change" for further contributors.
