• Country
• Germany

• Manufacturer / Brand
• QUELLE GmbH (Universum); Fürth und Nürnberg

• Year
• 1962

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 158319

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 9

• Semiconductors
• OC615 OC615 AF105 AF105 AF105 OC604 OC604 OC74 OC74

• Main principle
• Superheterodyne (common); ZF/IF 465/10700 kHz; 3 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)     11 FM circuit(s)

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Power type and voltage
• Dry Batteries / 9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 0.8 W (unknown quality)

• Material
• Various materials

• from Radiomuseum.org

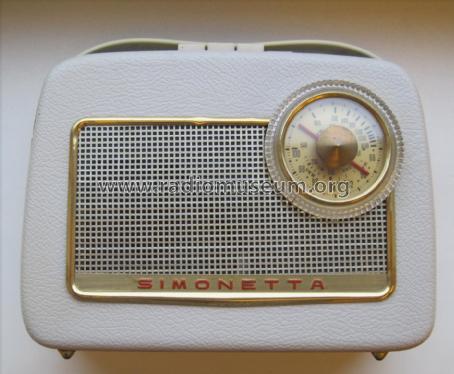

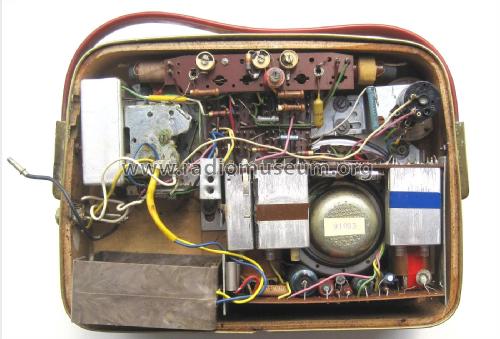

• Model: Simonetta BT931 Art.-Nr. 08526 & 08527 Ch=91093 - QUELLE GmbH Universum; Fürth

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 230 x 175 x 100 mm / 9.1 x 6.9 x 3.9 inch

• Notes

• Art.-Nr. 08526 weinrot/grau,
  Art.-Nr. 08527 lichtgrau/blau.

  Hergestellt von Südfunk, siehe Portable K91093

• Source of data
• -- Original-techn. papers.

• Author
• Model page created by Heribert Jung. See "Data change" for further contributors.
