TR-1315 Best. Nr. 02419

TR-1315 Best. Nr. 02419; QUELLE GmbH (ID = 1270490) Radio TR-1315 Best. Nr. 02419; QUELLE GmbH (ID = 1270491) Radio
TR-1315 Best. Nr. 02419; QUELLE GmbH (ID = 1270492) Radio TR-1315 Best. Nr. 02419; QUELLE GmbH (ID = 1270493) Radio
TR-1315 Best. Nr. 02419; QUELLE GmbH (ID = 1270494) Radio TR-1315 Best. Nr. 02419; QUELLE GmbH (ID = 1270495) Radio

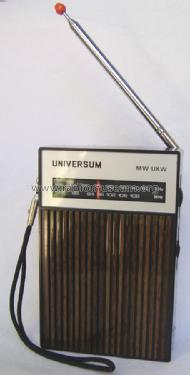

TR-1315 Best. Nr. 02419; QUELLE GmbH (ID = 1472400) Radio
Use red slider bar for more.

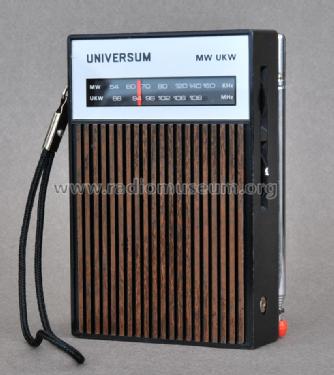

TR-1315 Best. Nr. 02419; QUELLE GmbH (ID = 1270490) Radio
QUELLE GmbH: TR-1315 Best. Nr. 02419 [Radio] ID = 1270490 825x925
Select picture or schematic to display from thumbnails on the right and click for download.
For model TR-1315 Best. Nr. 02419, QUELLE GmbH (Universum); Fürth und Nürnberg

Country:  Germany
Manufacturer / Brand:  QUELLE GmbH (Universum); Fürth und Nürnberg
Year: 1971 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 9:
Main principle Superheterodyne (common); ZF/IF 455/10700 kHz
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Dry Batteries / 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 cm = 2.4 inch
Power out
from Radiomuseum.org Model: TR-1315 Best. Nr. 02419 - QUELLE GmbH Universum; Fürth
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 80 x 120 x 38 mm / 3.1 x 4.7 x 1.5 inch

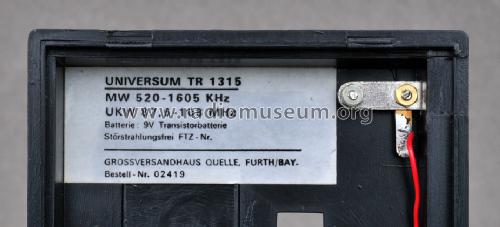

Notes MW 520 - 1605 kHz
UKW 87,6 - 108 MHz

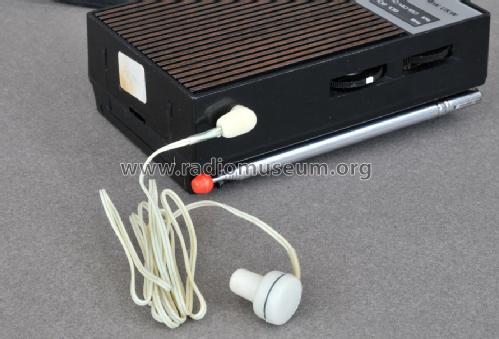

Ohrhöreranschluss
Net weight (2.2 lb = 1 kg) 0.3 kg / 0 lb 10.6 oz (0.661 lb)

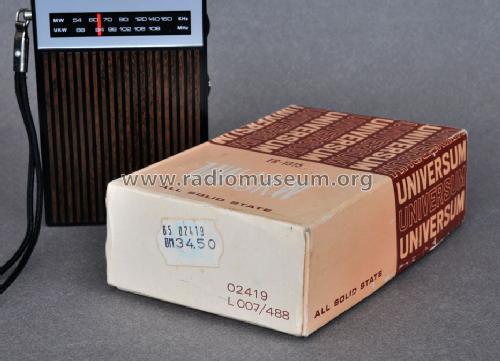

Price in first year of sale 34.00 DM

Model page created by Stephan Manthei. See "Data change" for further contributors.
