Universum All Transistor TR2325 BN 07880 Ge - Schlaufe rechts

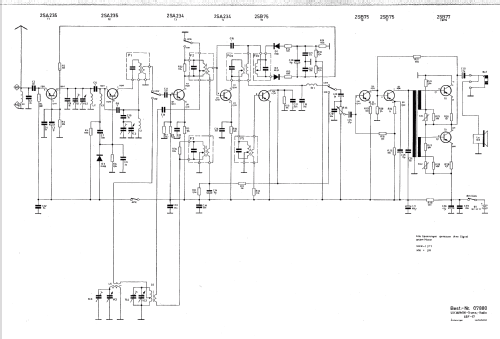

Universum All Transistor TR2325 BN 07880; QUELLE GmbH (ID = 1790695) Radio

Universum All Transistor TR2325 BN 07880; QUELLE GmbH (ID = 1790696) Radio

Universum All Transistor TR2325 BN 07880; QUELLE GmbH (ID = 1790697) Radio

Universum All Transistor TR2325 BN 07880; QUELLE GmbH (ID = 1790698) Radio
Universum All Transistor TR2325 BN 07880; QUELLE GmbH (ID = 802730) Radio Universum All Transistor TR2325 BN 07880; QUELLE GmbH (ID = 802731) Radio
Use red slider bar for more.
Universum All Transistor TR2325 BN 07880; QUELLE GmbH (ID = 802730) Radio
QUELLE GmbH: Universum All Transistor TR2325 BN 07880 [Radio] ID = 802730 920x611
Select picture or schematic to display from thumbnails on the right and click for download.
For model Universum All Transistor TR2325 BN 07880 Ge - Schlaufe rechts, QUELLE GmbH (Universum); Fürth und Nürnberg

Country:  Germany
Manufacturer / Brand:  QUELLE GmbH (Universum); Fürth und Nürnberg
Year: 1970 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 9: 2SA235 2SA235 2SA234 2SA234 2SB75 2SB75 2SB75 2SB77 2SB77 1N60 1N60 1S990
Main principle Super-Heterodyne (Super in general); ZF/IF 455/10700 kHz
Tuned circuits 4 AM circuit(s)     7 FM circuit(s)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Dry Batteries / 1 x 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 0.35 W (unknown quality)
from Radiomuseum.org Model: Universum All Transistor TR2325 BN 07880 [Ge - Schlaufe rechts] - QUELLE GmbH Universum; Fürth
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 75 x 115 x 35 mm / 3 x 4.5 x 1.4 inch
Notes

Es gibt auch eine Variante mit:

  • Ge-Transistoren und Trageschlaufe links
  • Si-Transistoren und Trageschlaufe links.

Siehe auch Neckermann Twen Tone 9 Transistor Art. Nr. 822/83

Net weight (2.2 lb = 1 kg) 0.3 kg / 0 lb 10.6 oz (0.661 lb)

Model page created by Guido Höh. See "Data change" for further contributors.
