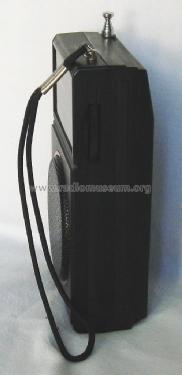

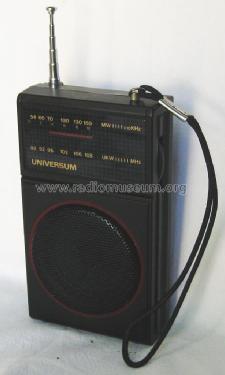

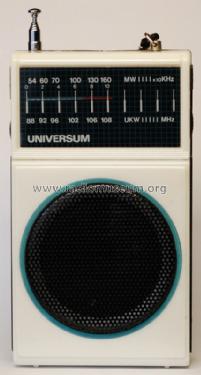

UKW/MW - Transistor - Radio TR 2653

QUELLE GmbH (Universum); Fürth und Nürnberg

  • Year
  • 1986–1988
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 177424

 Technical Specifications

  • Number of Transistors
  • 2
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Power type and voltage
  • Dry Batteries / 3x1,5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.7 cm = 2.2 inch
  • Power out
  • 0.18 W (unknown quality)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: UKW/MW - Transistor - Radio TR 2653 - QUELLE GmbH Universum; Fürth
  • Shape
  • Very small Portable or Pocket-Set (Handheld) < 8 inch.
  • Dimensions (WHD)
  • 75 x 132 x 41 mm / 3 x 5.2 x 1.6 inch
  • Notes
  • 1 IC; Bestellnummer 11302 6; Preis 1987-1988: 24.95 DM
  • Net weight (2.2 lb = 1 kg)
  • 0.3 kg / 0 lb 10.6 oz (0.661 lb)
  • Price in first year of sale
  • 29.00 DM
  • Author
  • Model page created by Gerhard Weiss. See "Data change" for further contributors.
