• Country
• Germany

• Manufacturer / Brand
• QUELLE GmbH (Universum); Fürth und Nürnberg

• Year
• 1978 ??

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 270894

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 1

• Valves / Tubes
• 310EUB4

• Number of Transistors
• 15

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

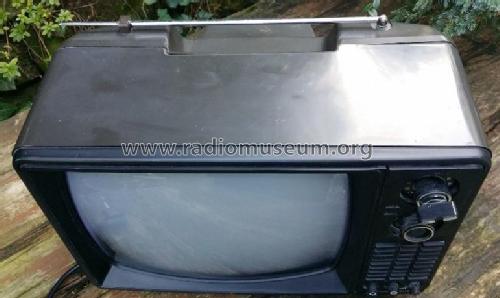

• Model: Universum - 31cm-Fernseh-Portable SK3235A - 025-9184 - QUELLE GmbH Universum; Fürth

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 380 x 265 x 270 mm / 15 x 10.4 x 10.6 inch

• Notes

• s/w. CCIR B/G Tuner.

  35 W Leistungsaufnahme.

• Author
• Model page created by a member from A. See "Data change" for further contributors.
