• Country
• Germany

• Manufacturer / Brand
• QUELLE GmbH (Universum); Fürth und Nürnberg

• Year
• 1975 ??

• Category
• Car Radio, perhaps also + sound player/recorder

• Radiomuseum.org ID
• 119726

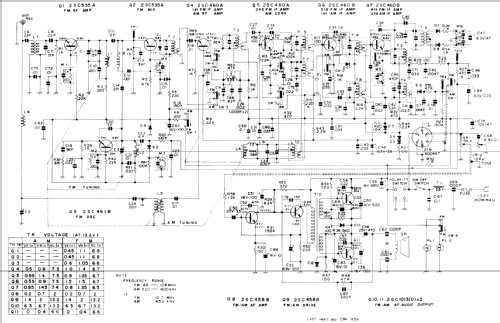

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 11

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 5 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org
• Model: Universum ATR-932Q - QUELLE GmbH Universum; Fürth

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 160 x 50 x 130 mm / 6.3 x 2 x 5.1 inch

• Notes
• 3 Stationstasten für UKW und 2 für MW.

• Net weight (2.2 lb = 1 kg)
• 1.5 kg / 3 lb 4.9 oz (3.304 lb)

• Source of data
• -- Original-techn. papers.

• Author
• Model page created by Ralf Krebs. See "Data change" for further contributors.
