• Country
• Germany

• Manufacturer / Brand
• QUELLE GmbH (Universum); Fürth und Nürnberg

• Year
• 1975 ??

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 217095

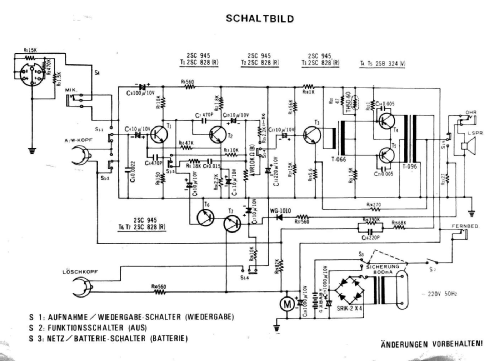

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 7

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Line / Batteries (any type) / 220 / R14: 4 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7 cm = 2.8 inch

• Power out
• 0.8 W (undistorted)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Universum Cassetten-Tonbandgerät CT 2455, Bestell Nr. 02977 - QUELLE GmbH Universum; Fürth

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 140 x 75 x 255 mm / 5.5 x 3 x 10 inch

• Notes

• Universum Cassetten-Tonbandgerät CT-2455, Bestell Nr. 02977;



• Net weight (2.2 lb = 1 kg)
• 1.7 kg / 3 lb 11.9 oz (3.744 lb)

• Author
• Model page created by a member from A. See "Data change" for further contributors.
