Universum Dynamic's System HiFi 2500 Bestell-No.: 012.391

Universum Dynamic's System HiFi 2500 Bestell-No.: 012.391; QUELLE GmbH (ID = 2113370) Ampl/Mixer

Universum Dynamic's System HiFi 2500 Bestell-No.: 012.391; QUELLE GmbH (ID = 2113558) Ampl/Mixer

Universum Dynamic's System HiFi 2500 Bestell-No.: 012.391; QUELLE GmbH (ID = 2113559) Ampl/Mixer

Universum Dynamic's System HiFi 2500 Bestell-No.: 012.391; QUELLE GmbH (ID = 2113560) Ampl/Mixer

Universum Dynamic's System HiFi 2500 Bestell-No.: 012.391; QUELLE GmbH (ID = 2113561) Ampl/Mixer

Universum Dynamic's System HiFi 2500 Bestell-No.: 012.391; QUELLE GmbH (ID = 2113562) Ampl/Mixer

Universum Dynamic's System HiFi 2500 Bestell-No.: 012.391; QUELLE GmbH (ID = 2113563) Ampl/Mixer

Universum Dynamic's System HiFi 2500 Bestell-No.: 012.391; QUELLE GmbH (ID = 2113564) Ampl/Mixer

Universum Dynamic's System HiFi 2500 Bestell-No.: 012.391; QUELLE GmbH (ID = 2113565) Ampl/Mixer

Universum Dynamic's System HiFi 2500 Bestell-No.: 012.391; QUELLE GmbH (ID = 2113566) Ampl/Mixer
Universum Dynamic's System HiFi 2500 Bestell-No.: 012.391; QUELLE GmbH (ID = 2088398) Ampl/Mixer Universum Dynamic's System HiFi 2500 Bestell-No.: 012.391; QUELLE GmbH (ID = 2088399) Ampl/Mixer
Universum Dynamic's System HiFi 2500 Bestell-No.: 012.391; QUELLE GmbH (ID = 2088400) Ampl/Mixer Universum Dynamic's System HiFi 2500 Bestell-No.: 012.391; QUELLE GmbH (ID = 1815323) Ampl/Mixer
Universum Dynamic's System HiFi 2500 Bestell-No.: 012.391; QUELLE GmbH (ID = 1815325) Ampl/Mixer
Use red slider bar for more.
Universum Dynamic's System HiFi 2500 Bestell-No.: 012.391; QUELLE GmbH (ID = 2088398) Ampl/Mixer

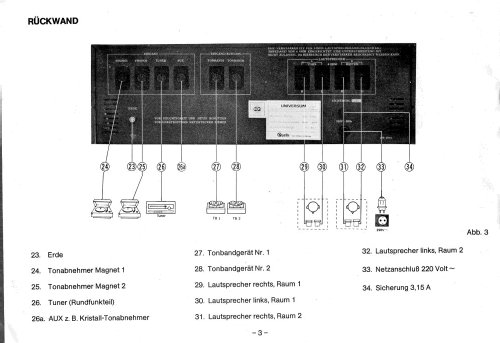

QUELLE GmbH: Universum Dynamic's System HiFi 2500 Bestell-No.: 012.391 [Ampl/Mixer] ID = 2088398 1400x810
Select picture or schematic to display from thumbnails on the right and click for download.
For model Universum Dynamic's System HiFi 2500 Bestell-No.: 012.391, QUELLE GmbH (Universum); Fürth und Nürnberg

Country:  Germany
Manufacturer / Brand:  QUELLE GmbH (Universum); Fürth und Nürnberg
Year: 1980 ?? Category: Audio Amplifier or -mixer
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker - This model requires external speaker(s).
Power out 100 W (undistorted)
from Radiomuseum.org Model: Universum Dynamic's System HiFi 2500 Bestell-No.: 012.391 - QUELLE GmbH Universum; Fürth
Material Metal case
Shape Book-shelf unit.
Dimensions (WHD) 420 x 150 x 340 mm / 16.5 x 5.9 x 13.4 inch
Notes

Quelle HiFi Stereo Vollverstärker Modell Universm Dynamic's Systm HiFi 2500.
2x 75 Watt Musk, 2x 50 Watt Sinus
40 - 20000Hz +/- 1,5dB
Phono1 IN, Phono2 IN, Tuner IN, AUX IN
Tape Monitor
Mic Mixing
Bass- & Treble Contol
Loudness
Speakers A, B, A+B, Matrix
Muting


Price in first year of sale 298.00 DM
Mentioned in -- Original prospect or advert (Quelle Katalog 1980)

Model page created by Franz Scharner. See "Data change" for further contributors.
