• Country
• Germany

• Manufacturer / Brand
• QUELLE GmbH (Universum); Fürth und Nürnberg

• Year
• 1980 ??

• Category
• Television- and Radio Receiver, perh. also + Rec. etc. (TV Radio)

• Radiomuseum.org ID
• 118928

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 1

• Valves / Tubes
• 200SB4

• Number of Transistors
• 36

• Semiconductors
• LA1201 TA7137 TA7222

• Main principle
• Superheterodyne (common)

• Wave bands
• Wave Bands given in the notes.

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Line / Storage batteries (perhaps also batteries) / 220 / 12 / 9 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 11 cm = 4.3 inch

• Power out
• 2.5 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

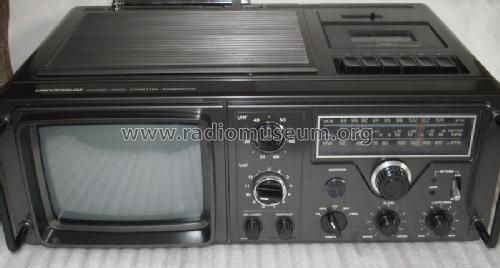

• Model: Universum FRC2096 - QUELLE GmbH Universum; Fürth

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 465 x 160 x 305 mm / 18.3 x 6.3 x 12 inch

• Notes

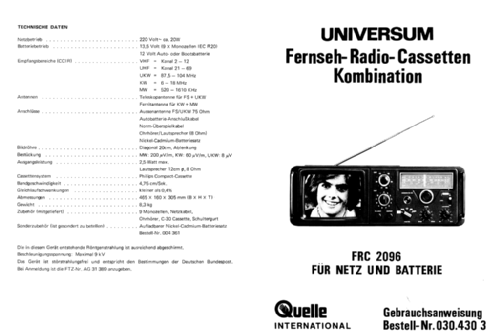

• Universum Fernseh-Radio-Cassetten Kombination FRC2096,
  20 cm s/w TV mit CCIR B/G Standard VHF/UHF Tuner, AM/UKW-Radio.
  Teleskopantenne für FS + UKW / Ferritantenne für KW + MW,
  Anschlüsse:

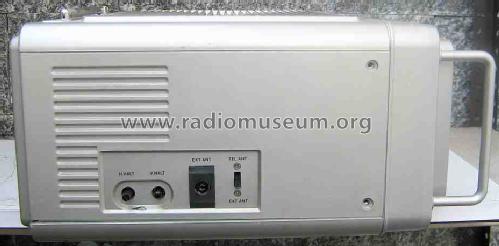

  Aussenantenne FS/UKW 75 Ohm, Autobatterie-Anschlußkabell, Norm-Überspielkabel, Ohrhörer/Lautsprecher, Aufladbarer Nickel-Cadmium-Batteriesatz ( 004 361) als Sonderzubehör.
  Siehe auch Plustronics Plustron TVRC7.

• Net weight (2.2 lb = 1 kg)
• 8.3 kg / 18 lb 4.5 oz (18.282 lb)

• Source of data
• -- Collector info (Sammler)

• Author
• Model page created by a member from A. See "Data change" for further contributors.
