• Country
• Germany

• Manufacturer / Brand
• QUELLE GmbH (Universum); Fürth und Nürnberg

• Year
• 1995 ?

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 250720

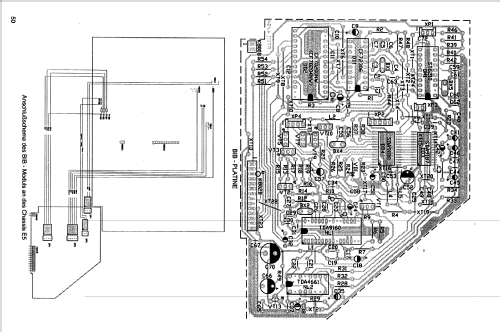

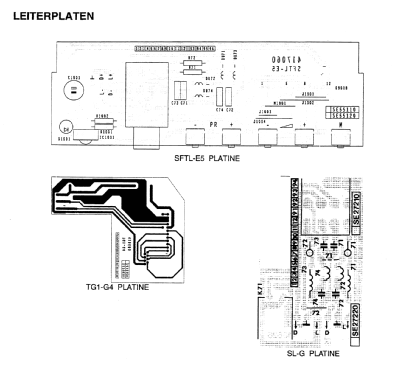

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 1

• Valves / Tubes

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 38900 kHz

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Details
• Radio Control (+Remote Wire etc)

• Power type and voltage
• Alternating Current supply (AC) / 180-250 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• from Radiomuseum.org
• Model: Universum FT 4246 Best.Nr. 023.678 6 - QUELLE GmbH Universum; Fürth

• Shape
• Tablemodel, Tombstone = decorative upright, not cathedral but can have rounded edges.

• Dimensions (WHD)
• 500 x 450 x 470 mm / 19.7 x 17.7 x 18.5 inch

• Notes

• Farbfernseher mit 55cm 90 Grad Flat Square Bildröhre.
  Tuner für VHF / UHF / Sonderkanäle S1 - S41.
  Videotext mit 1 Seitenspeicher.





• Price in first year of sale
• 599.00 DM

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by a member from D. See "Data change" for further contributors.
