Universum Senator CTR2002

Universum Senator CTR2002; QUELLE GmbH (ID = 1068325) Radio Universum Senator CTR2002; QUELLE GmbH (ID = 1068326) Radio
Universum Senator CTR2002; QUELLE GmbH (ID = 1068327) Radio Universum Senator CTR2002; QUELLE GmbH (ID = 1068328) Radio
Universum Senator CTR2002; QUELLE GmbH (ID = 1225994) Radio
Use red slider bar for more.

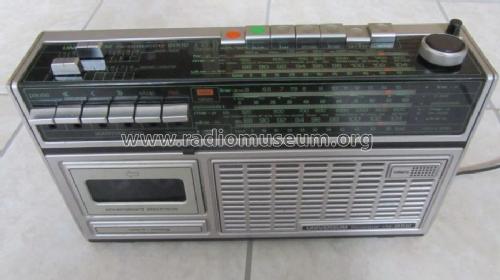

Universum Senator CTR2002; QUELLE GmbH (ID = 1068325) Radio
QUELLE GmbH: Universum Senator CTR2002 [Radio] ID = 1068325 933x524
Select picture or schematic to display from thumbnails on the right and click for download.
For model Universum Senator CTR2002, QUELLE GmbH (Universum); Fürth und Nürnberg

Country:  Germany
Manufacturer / Brand:  QUELLE GmbH (Universum); Fürth und Nürnberg
Year: 1977 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 6: BF414 BF441 BD135 BC338 BC338 BC338
Main principle Super-Heterodyne (Super in general); ZF/IF 460/10700 kHz
Tuned circuits 6 AM circuit(s)     11 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details Cassette-Recorder or -Player
Power type and voltage Line / Batteries (any type) / 110; 220 / 6 × 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 1.5 W (unknown quality)
from Radiomuseum.org Model: Universum Senator CTR2002 - QUELLE GmbH Universum; Fürth
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 360 x 212 x 85 mm / 14.2 x 8.3 x 3.3 inch
Notes Siehe auch Telefunken Bajatzo CR2000 IC: TBA570Q FM-ZF Stufe, AM Osz.-Misch.-ZF-Stufe, AM Demodulator TBA810 NF Verstärker TDA1054 Aufsprech- Wiedergabeverstärker (Kassettenteil)
Net weight (2.2 lb = 1 kg) 3.2 kg / 7 lb 0.8 oz (7.048 lb)
Collectors' prices

Model page created by Holger Krebs. See "Data change" for further contributors.
