Universum SK-2215

Universum SK-2215; QUELLE GmbH (ID = 904663) Television Universum SK-2215; QUELLE GmbH (ID = 904984) Television
Universum SK-2215; QUELLE GmbH (ID = 905002) Television
Use red slider bar for more.
Universum SK-2215; QUELLE GmbH (ID = 904663) Television

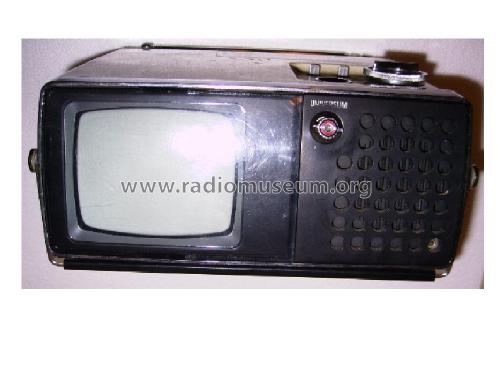

QUELLE GmbH: Universum SK-2215 [Television] ID = 904663 933x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Universum SK-2215, QUELLE GmbH (Universum); Fürth und Nürnberg

Country:  Germany
Manufacturer / Brand:  QUELLE GmbH (Universum); Fürth und Nürnberg
Year: 1972 ?? Category: Television Receiver (TV) or Monitor
Valves / Tubes 1: 110CB4
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common)
Wave bands VHF incl. FM and/or UHF (see notes for details)
Details
Power type and voltage Line / Batteries (any type) / 220 / 12; 9 x 1.5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 cm = 2.4 inch
Power out
from Radiomuseum.org Model: Universum SK-2215 - QUELLE GmbH Universum; Fürth
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 240 x 100 x 220 mm / 9.4 x 3.9 x 8.7 inch
Notes Wie Universum SK 2216, nur ohne Radio. VHF und UHF mit jeweils eigener koaxialer Antennenbuchse. Anschlüsse für Netz 220V~, Auto 12V= und Batteriefach für neun Monozellen. Gerät vermutlich in Japan hergestellt.

Model page created by Erich Dorninger. See "Data change" for further contributors.
