Universum 9 Transistor FM+AM 2-Band Radio

Universum 9 Transistor FM+AM 2-Band Radio; QUELLE GmbH (ID = 740543) Radio Universum 9 Transistor FM+AM 2-Band Radio; QUELLE GmbH (ID = 740544) Radio
Universum 9 Transistor FM+AM 2-Band Radio; QUELLE GmbH (ID = 740545) Radio Universum 9 Transistor FM+AM 2-Band Radio; QUELLE GmbH (ID = 591578) Radio
Universum 9 Transistor FM+AM 2-Band Radio; QUELLE GmbH (ID = 591579) Radio Universum 9 Transistor FM+AM 2-Band Radio; QUELLE GmbH (ID = 591580) Radio
Universum 9 Transistor FM+AM 2-Band Radio; QUELLE GmbH (ID = 1593211) Radio Universum 9 Transistor FM+AM 2-Band Radio; QUELLE GmbH (ID = 1593212) Radio
Universum 9 Transistor FM+AM 2-Band Radio; QUELLE GmbH (ID = 1593214) Radio Universum 9 Transistor FM+AM 2-Band Radio; QUELLE GmbH (ID = 1602783) Radio
Use red slider bar for more.

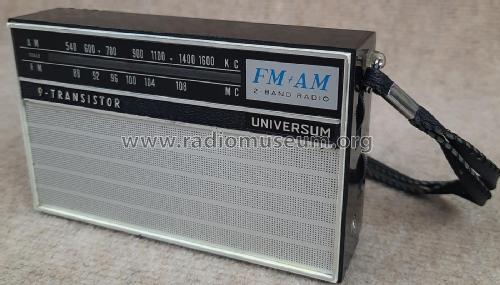

Universum 9 Transistor FM+AM 2-Band Radio; QUELLE GmbH (ID = 740543) Radio
QUELLE GmbH: Universum 9 Transistor FM+AM 2-Band Radio [Radio] ID = 740543 730x551
Select picture or schematic to display from thumbnails on the right and click for download.
For model Universum 9 Transistor FM+AM 2-Band Radio, QUELLE GmbH (Universum); Fürth und Nürnberg

Country:  Germany
Manufacturer / Brand:  QUELLE GmbH (Universum); Fürth und Nürnberg
Year: 1966/1967 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 9: 2SA235 2SA235 2SA234 2SA234 2SB77 2SB77 2SB75 2SB75 2SA12
Main principle Superheterodyne (common)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Storage and/or dry batteries / 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: Universum 9 Transistor FM+AM 2-Band Radio - QUELLE GmbH Universum; Fürth
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 145 x 90 x 43 mm / 5.7 x 3.5 x 1.7 inch
Notes

Made in Taiwan

Net weight (2.2 lb = 1 kg) 0.4 kg / 0 lb 14.1 oz (0.881 lb)
Price in first year of sale 48.00 DM
External source of data Angaben aus Quelle Katalog 1966/67

Model page created by Gerhard Weiss. See "Data change" for further contributors.
