UR1595

UR1595; QUELLE GmbH (ID = 434888) Radio UR1595; QUELLE GmbH (ID = 434890) Radio

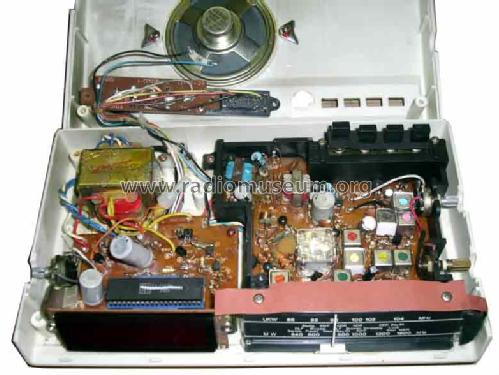

UR1595; QUELLE GmbH (ID = 434889) Radio
Use red slider bar for more.
UR1595; QUELLE GmbH (ID = 434888) Radio
QUELLE GmbH: UR1595 [Radio] ID = 434888 783x313
Select picture or schematic to display from thumbnails on the right and click for download.
For model UR1595, QUELLE GmbH (Universum); Fürth und Nürnberg

Country:  Germany
Manufacturer / Brand:  QUELLE GmbH (Universum); Fürth und Nürnberg
Year: 1970 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 16:
schematic requested
Main principle Superheterodyne (common)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7.5 cm = 3 inch
Power out 0.5 W (unknown quality)
from Radiomuseum.org Model: UR1595 - QUELLE GmbH Universum; Fürth
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel with Clock ((Alarm-) Clock Radio).
Dimensions (WHD) 250 x 70 x 150 mm / 9.8 x 2.8 x 5.9 inch
Notes IC: EA7317.
Source of data - - Data from my own collection

Model page created by Bernd Pötzsch. See "Data change" for further contributors.
