• Country
• Germany

• Manufacturer / Brand
• QUELLE GmbH (Universum); Fürth und Nürnberg

• Year
• 1970 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 119937

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 13

• Semiconductors
• LM8361

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7.7 cm = 3 inch

• Power out
• 0.6 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

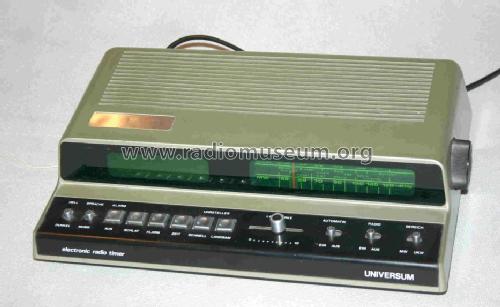

• Model: Universum Electronic Radio Timer UR1886A Best. Nr. 005.129-2 - QUELLE GmbH Universum; Fürth

• Shape
• Tablemodel with Clock ((Alarm-) Clock Radio).

• Dimensions (WHD)
• 280 x 190 x 70 mm / 11 x 7.5 x 2.8 inch

• Notes
• Universum / Quelle International, bekannt mit grauem und weißem Gehäuse. 7-Seg. LED-Anzeige, grüne Senderskala, Sleeptimer, Weckfunktion. Wurfantenne für UKW. FTZ-Nr. U 153

• Net weight (2.2 lb = 1 kg)
• 1.2 kg / 2 lb 10.3 oz (2.643 lb)

• Author
• Model page created by a member from D. See "Data change" for further contributors.
