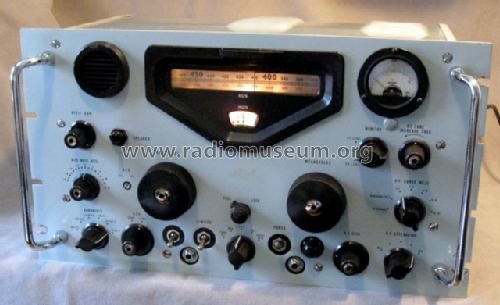

Racal Engineering: RA-117 [Commercial Re] ID = 1345633 640x391
Select picture or schematic to display from thumbnails on the right and click for download.
For model RA-117, Racal Engineering (Racal Instruments) Ltd., Bracknell:
.cs.ubc.ca

Country:  Great Britain (UK)
Manufacturer / Brand:  Racal Engineering (Racal Instruments) Ltd., Bracknell
Year: 1958–1962 ?? Category: Commercial Receiver (may include amateur bands)
Valves / Tubes 25: M8100 ECC189 6AS6 EF93 E180F ECC81 6BE6W EB91 EL90
Main principle Wadley-Loop principle (including dual superhet); ZF/IF 40000/2500 kHz
Wave bands Broadcast plus more than 2 Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 100-125/200-250 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2.5 inch = 6.4 cm
Power out 1 W (unknown quality)
from Radiomuseum.org Model: RA-117 - Racal Engineering Racal
Material Metal case
Shape Rack
Dimensions (WHD) 482 x 277 x 460 mm / 19 x 10.9 x 18.1 inch
Notes Coverage 980 - 30000 kHz, AM/SSB with BFO, linear analog readout (ca. 1 kHz). Standard bandwidths are 0,1 / 0,3 / 1,2 / 3 / 6,5 / 13 MHz.
Professional general coverage receiver with "Wadley-Loop" technique, produced alongside with the RA-17. This sets uses a third IF stage, is equipped with an external / 2nd VFO input (can be controlled by transceiver MA79 or decadic frequency synthesizer MA350B), and has higher AF output power.
The set can be recognized by the rotating knob of the function switch below the S-Meter.
Some tubes are partly several times present.
Produced in several variants, RA-6117A is the designation for the same model produced by Racal USA.
Source of data Shortwave Receivers - Past & Present (3rd ed.)
Mentioned in Racal Handbook, Rinus Jansen

Model page created by Martin Bösch. See "Data change" for further contributors.
