E180F

Information - Help
ID = 18574

Country:
Europe
Brand:
Tube type:  Vacuum Pentode   clamp grid   Universal
Identical to E180F = 6Ж9П = 6688 = CV3998 = 5A/170K = CV6189
First Source (s)
Jul.1954 : Funkschau 1954 Heft 11

Base Noval, 9 pin miniature (USA pico-9) B9A
Filament Vf 6.3 Volts / If 0.3 Ampere / Indirect / Specified voltage AC/DC
Description

Special Quality Valve. RF Pentode with gm of 16.5. Triode connected, it achieves gm of 21mA/V.


Text in other languages (may differ)
Dimensions (WHD)
incl. pins / tip
22 x 39 x mm / 0.87 x 1.54 x inch
Weight 10 g / 0.35 oz
Tube prices 27 Tube prices (visible for members only)

E180F: Courtesy Bureau Belper (De Muiderkring, Bussum), Scan Frank Philipse
Karel De Reus †

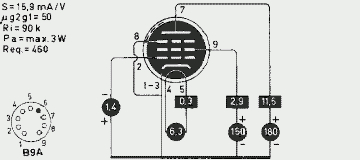

e180f_sockel.png E180F: Telefunken
Thomas Günzel † 1.8.22

More ...

Just Qvigstad
E180F: Manufacturer's Literature
Emilio Ciardiello

More ...
Usage in Models 1= 1954?? ; 1= 1954 ; 1= 1955?? ; 4= 1955? ; 2= 1956?? ; 1= 1956? ; 1= 1956 ; 1= 1957?? ; 7= 1957? ; 2= 1957 ; 5= 1958?? ; 3= 1958? ; 2= 1958 ; 1= 1959?? ; 1= 1959? ; 2= 1959 ; 8= 1960?? ; 1= 1960? ; 1= 1961?? ; 2= 1961? ; 1= 1961 ; 1= 1962? ; 3= 1962 ; 2= 1963? ; 3= 1963 ; 2= 1964?? ; 3= 1964? ; 2= 1964 ; 5= 1965?? ; 1= 1965 ; 1= 1966?? ; 1= 1966? ; 1= 1966 ; 2= 1967?? ; 1= 1968?? ; 1= 1969 ; 3= 1970?? ; 1= 1975?

Quantity of Models at Radiomuseum.org with this tube (valve, valves, valvola, valvole, válvula, lampe):81
