• Year
  • 1936
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 84219

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 465 kHz
  • Wave bands
  • Broadcast, Long Wave and Short Wave.
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 130; 150; 220; 240 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
  • Material
  • Wooden case
  • from Radiomuseum.org

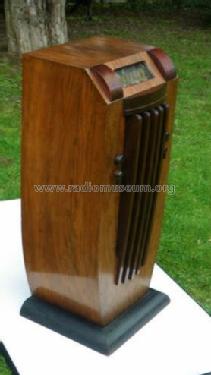

  • Model: TO56 [Console] - Radialva, Véchambre Frères;
  • Shape
  • Console with any shape - in general
  • Notes
  • Cadran pupitre 3 couleurs. Tonalité variable.

    Dans une publicité,  la fréquence MF est specifié comme 475 kHz. Ce modèle est répertorié comme T056 (avec un zero) dans le Guide Biraud.

  • Price in first year of sale
  • 1,575.00 FRF
  • Literature/Schematics (1)
  • -- Original prospect or advert
  • Author
  • Model page created by Ernst Erb. See "Data change" for further contributors.
