For model RME-45B, Radio Mfg. Engineers, Inc. (RME); Peoria, IL

Country:  United States of America (USA)
Manufacturer / Brand:  Radio Mfg. Engineers, Inc. (RME); Peoria, IL
Year: 1947/1948 Category: Amateur-Receiver (amateur bands, may include broadcast bands)
Valves / Tubes 9: 7B7 7S7 7B7 7B7 7C7 7A6 7C7 7C5 5Y3G VR150
Main principle Superhet with RF-stage; ZF/IF 455 kHz
Wave bands Broadcast plus more than 2 Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 115 Volt
Loudspeaker - For headphones or amp.
Power out 3 W (unknown quality)
from Radiomuseum.org Model: RME-45B - Radio Mfg. Engineers, Inc. RME
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 563 x 305 x 279 mm / 22.2 x 12 x 11 inch
Notes

General coverge commications receiver, covering 540-33 MHz in six bands (0.54-1.6, 1.6-2.9, 2.9-5.4, 5.4-9.8, 9.8-18, and 18-33 MHz), AM, CW (BFO). Coverage was expanded with optional accessories.

The RME-45B differs from the RME-45 in that the 7J7 is replaced by the 7S7, the 80 rectifier is replaced by the 5Y3G, and the VR-150 voltage regulator is added. Also. the tuning was changed to give it a calibrated bandspread and two tuning speeds.

Accessories included the optional spekaker, DB-22A Preselector, NBF-4 and NB-FM Adaptors, XC-2 Fixed Frequency option, VHF-152A 2 and 6-meter Converter, and HF 10-20 Converter.

Net weight (2.2 lb = 1 kg) 20 kg / 44 lb 0.8 oz (44.053 lb)
Source of data Shortwave Receivers - Past & Present (3rd ed.)

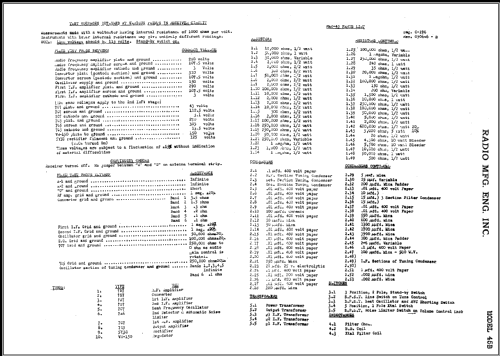

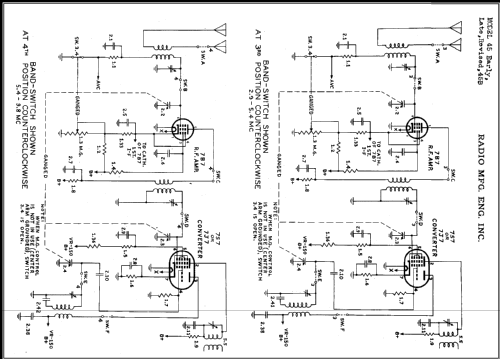

Circuit diagram reference Rider's Perpetual, Volume 15 = 1947 and before
Mentioned in Communications Receivers

Model page created by Peter Rutishauser. See "Data change" for further contributors.
