• Country
• France

• Manufacturer / Brand
• Radio Commercial; Paris

• Year
• 1958

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 139261

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

• Valves / Tubes
• 12AX7 EL84 EZ80

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 110; 115; 130; 220; 240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 4 W (unknown quality)

• Material
• Various materials

• from Radiomuseum.org

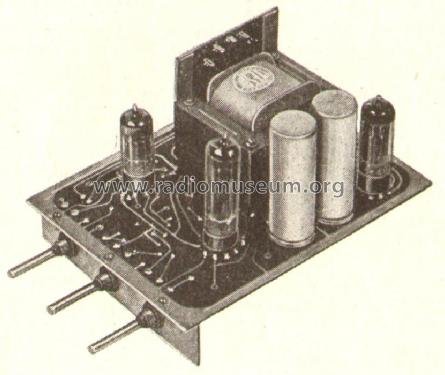

• Model: Reporter BF3 - Radio Commercial; Paris

• Dimensions (WHD)
• 190 x 0 x 150 mm / 7.5 x 0 x 5.9 inch

• Notes
• Amplificateur sur circuit imprimé pour électrophone, poste de radio etc..

• Literature/Schematics (1)
• Radio Constructeur et Dépanneur 1958

• Author
• Model page created by Raynal Aufils. See "Data change" for further contributors.
