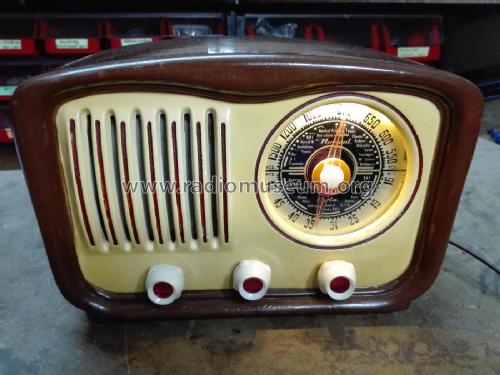

Desconocido - Unknown 1

Radio Emir; Madrid

  • Year
  • 1953 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 300800

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 468 kHz; 2 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast and Short Wave (SW).
  • Power type and voltage
  • Alternating Current supply (AC) / 125 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
  • Power out
  • 2.5 W (unknown quality)
  • Material
  • Bakelite or Plastics (type unknown)
  • from Radiomuseum.org
  • Model: Desconocido - Unknown 1 - Radio Emir; Madrid
  • Shape
  • Tablemodel without push buttons, Mantel/Midget/Compact up to 14
  • Dimensions (WHD)
  • 245 x 165 x 140 mm / 9.6 x 6.5 x 5.5 inch
  • Notes
  • El material de la caja es inyectado, pero no es baquelita. Es un tipo de resina. Imita cerámica, pero no lo es.

  • Net weight (2.2 lb = 1 kg)
  • 2.720 kg / 5 lb 15.9 oz (5.991 lb)
