Salon Picoleta Special

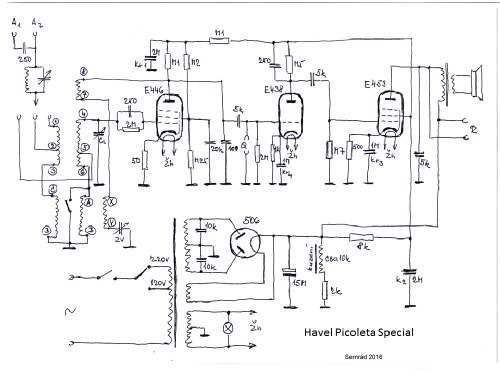

Salon Picoleta Special ; Radio Havel, Praha (ID = 2344648) Radio
Salon Picoleta Special ; Radio Havel, Praha (ID = 2476668) Radio Salon Picoleta Special ; Radio Havel, Praha (ID = 2476671) Radio
Salon Picoleta Special ; Radio Havel, Praha (ID = 2476670) Radio Salon Picoleta Special ; Radio Havel, Praha (ID = 1855423) Radio
Use red slider bar for more.

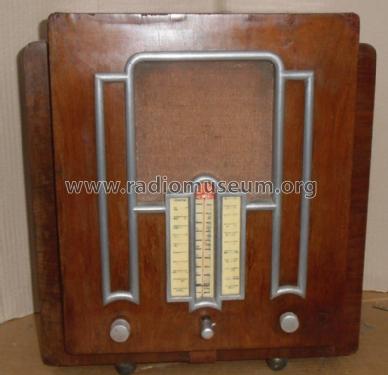

Salon Picoleta Special ; Radio Havel, Praha (ID = 2476668) Radio
Radio Havel, Praha: Salon Picoleta Special [Radio] ID = 2476668 795x768
Select picture or schematic to display from thumbnails on the right and click for download.
For model Salon Picoleta Special, Radio Havel, Praha

Country:  Czechoslovakia
Manufacturer / Brand:  Radio Havel, Praha
Year: 1933/1934 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: E446 E438 E453 506
Main principle TRF (Tuned-Radio-Frequency but use of regeneration unknown)
Tuned circuits 1 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Alternating Current supply (AC)
Loudspeaker Permanent or electro-dynamic (moving coil), system not known yet.
Power out
from Radiomuseum.org Model: Salon Picoleta Special - Radio Havel, Praha
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 370 x 402 x 220 mm / 14.6 x 15.8 x 8.7 inch
Price in first year of sale 1'690.00 Kc
Literature/Schematics (1) Katalog Milos Endler

Model page created by Wolfgang Lill. See "Data change" for further contributors.



All listed radios etc. from Radio Havel, Praha
Here you find 17 models, 11 with images and 4 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
