Douglas 57C

Douglas 57C; Radio L.L. Lucien (ID = 2130196) Radio Douglas 57C; Radio L.L. Lucien (ID = 2130197) Radio

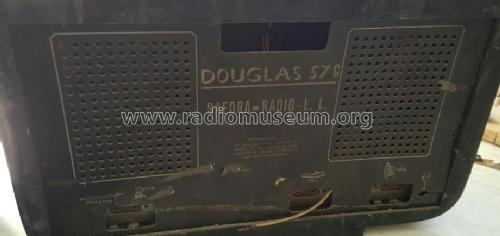

Douglas 57C; Radio L.L. Lucien (ID = 2130198) Radio Douglas 57C; Radio L.L. Lucien (ID = 1449495) Radio
Use red slider bar for more.
Douglas 57C; Radio L.L. Lucien (ID = 2130196) Radio
Radio L.L. Lucien: Douglas 57C [Radio] ID = 2130196 920x682
Select picture or schematic to display from thumbnails on the right and click for download.
For model Douglas 57C, Radio L.L. (Lucien Levy, LL Radio), S.A.E.D.R.A., Douglas; Paris

Country:  France
Manufacturer / Brand:  Radio L.L. (Lucien Levy, LL Radio), S.A.E.D.R.A., Douglas; Paris
alternative name

LL || Radio LL
Year: 1956/1957 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECH81 6BE6 EBF80 EL84 EM34 EZ80
Main principle Superheterodyne (common)
Wave bands Broadcast, Long Wave and 2 x Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110/245 Volt
Loudspeaker Permanent or electro-dynamic (moving coil), system not known yet. / Ø 19 cm = 7.5 inch
Power out
from Radiomuseum.org Model: Douglas 57C - Radio L.L. Lucien Levy, LL
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 480 x 300 x 220 mm / 18.9 x 11.8 x 8.7 inch
Notes

4 gammes d'ondes. Grand cadre à air antiparasite incorporé. Clavier de commande 7 touches. Prises Pick-up et HP supplémentaire.

Ébénisterie noyer chaud, décor vert et or, tissu assorti.

Net weight (2.2 lb = 1 kg) 8 kg / 17 lb 9.9 oz (17.621 lb)
Price in first year of sale 29'800.00 FRF

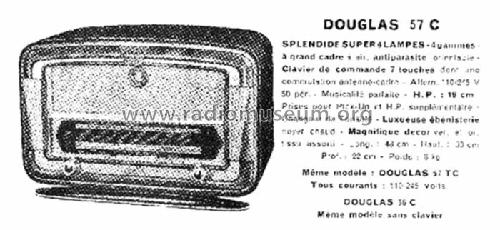

Mentioned in -- Original prospect or advert
Literature/Schematics (1) Le grand livre de la TSF (Doctsf Ref 26166)
Literature/Schematics (2) - - Manufacturers Literature (Prix de Vente Sep. 1956)

Model page created by Mark Hippenstiel. See "Data change" for further contributors.
