• Country
• France

• Manufacturer / Brand
• Radio L.L. (Lucien Levy, LL Radio), S.A.E.D.R.A., Douglas; Paris

• Year
• 1949

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 68624

• • alternative name: LL || Radio LL

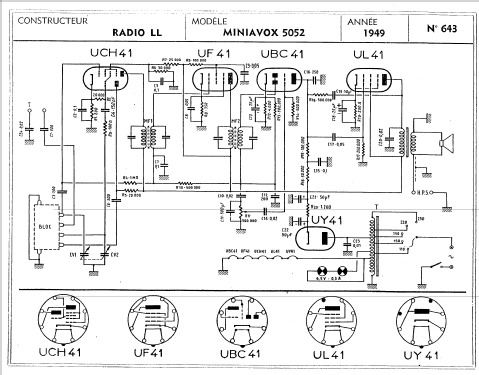

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• UCH41 UF41 UBC41 UL41 UY41

• Main principle
• Superheterodyne (common); ZF/IF 472 kHz

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110-250 Volt

• Material
• Bakelite or Plastics (type unknown)

• from Radiomuseum.org

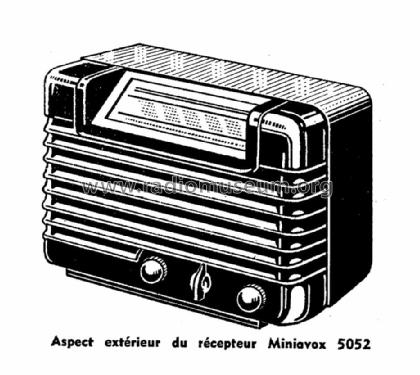

• Model: Miniavox 5052 - Radio L.L. Lucien Levy, LL

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Notes

• Gammes d'ondes: OC 17,85 à 5,77 MHz, PO 1538 à 526 kHz, GO 309 à 145 kHz.

• External source of data
• Serge Laffont/Martin Renoth

• Source of data
• Schémathèque Toute la Radio (STR)

• Mentioned in
• Le grand livre de la TSF (Doctsf Ref 2459)
