Miniavox 53A

Miniavox 53A; Radio L.L. Lucien (ID = 307780) Radio

Miniavox 53A; Radio L.L. Lucien (ID = 307781) Radio
Miniavox 53A; Radio L.L. Lucien (ID = 2255878) Radio Miniavox 53A; Radio L.L. Lucien (ID = 2255886) Radio
Miniavox 53A; Radio L.L. Lucien (ID = 2255884) Radio Miniavox 53A; Radio L.L. Lucien (ID = 2255881) Radio
Miniavox 53A; Radio L.L. Lucien (ID = 2255880) Radio Miniavox 53A; Radio L.L. Lucien (ID = 2255879) Radio
Miniavox 53A; Radio L.L. Lucien (ID = 2255883) Radio Miniavox 53A; Radio L.L. Lucien (ID = 265889) Radio
Miniavox 53A; Radio L.L. Lucien (ID = 1448547) Radio Miniavox 53A; Radio L.L. Lucien (ID = 2497294) Radio
Use red slider bar for more.

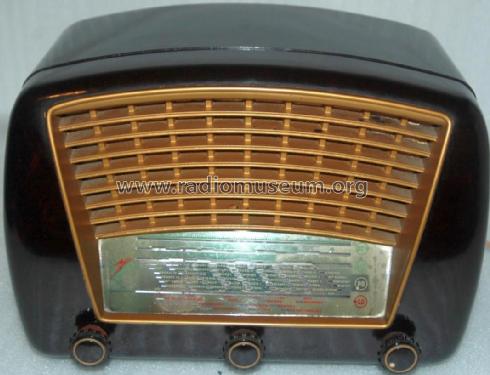

Miniavox 53A; Radio L.L. Lucien (ID = 2255878) Radio
Radio L.L. Lucien: Miniavox 53A [Radio] ID = 2255878 1067x816
Select picture or schematic to display from thumbnails on the right and click for download.
For model Miniavox 53A, Radio L.L. (Lucien Levy, LL Radio), S.A.E.D.R.A., Douglas; Paris

Country:  France
Manufacturer / Brand:  Radio L.L. (Lucien Levy, LL Radio), S.A.E.D.R.A., Douglas; Paris
alternative name

LL || Radio LL
Year: 1952/1953 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECH42 EF41 EBC41 EL41 GZ40
Main principle Superheterodyne (common); ZF/IF 480 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and 2 x Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-245 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 17 cm = 6.7 inch
Power out
from Radiomuseum.org Model: Miniavox 53A - Radio L.L. Lucien Levy, LL
Material Bakelite case
Shape Tablemodel without push buttons, Mantel/Midget/Compact up to 14
Dimensions (WHD) 320 x 220 x 200 mm / 12.6 x 8.7 x 7.9 inch
Notes

4 gammes d'ondes de 13 à 2000 m, dont 2 OC 13/100 m. Cadran miroir. Prises pick-up et HP supplémentaire.

Existe aussi en version pour secteur 25 périodes.

Net weight (2.2 lb = 1 kg) 4 kg / 8 lb 13 oz (8.811 lb)
External source of data Serge Laffont/Martin Renoth
Mentioned in Le grand livre de la TSF (Doctsf Ref 6759)

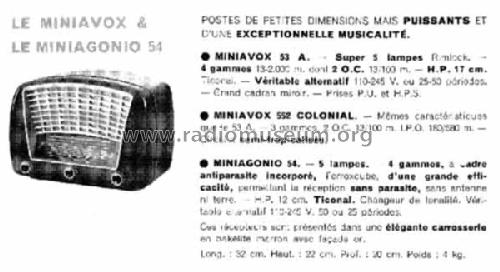

Literature/Schematics (1) -- Original prospect or advert


All listed radios etc. from Radio L.L. (Lucien Levy, LL Radio), S.A.E.D.R.A., Douglas; Paris
Here you find 369 models, 263 with images and 75 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
