• Country
• Belgium

• Manufacturer / Brand
• Bell Telephone Mfg. Co. (Radiobell); Antwerp

• Year
• 1945/1946

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 82690

• • Brand: Radiobell

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 6K8G 6K7G 6Q7G 6V6G Y63 5Z4G

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 115; 125; 135; 150; 225; 250 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 4.5 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

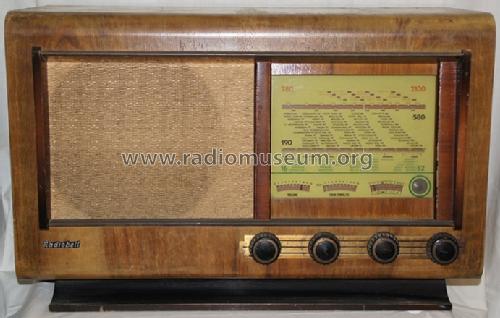

• Model: Radiobell 46 - Bell Telephone Mfg. Co.

• Shape
• Tablemodel, low profile (big size).

• Notes

• Wavebands:
  LW = 780 - 2100 m
  MW = 190 - 580 m
  SW = 16 - 52 m

  Cabinet in semi-matte flamed walnut.

• Price in first year of sale
• 7,500.00 BFR

• External source of data
• unknown

• Mentioned in
• -- Original prospect or advert

• Author
• Model page created by Bruno Brasseur. See "Data change" for further contributors.
